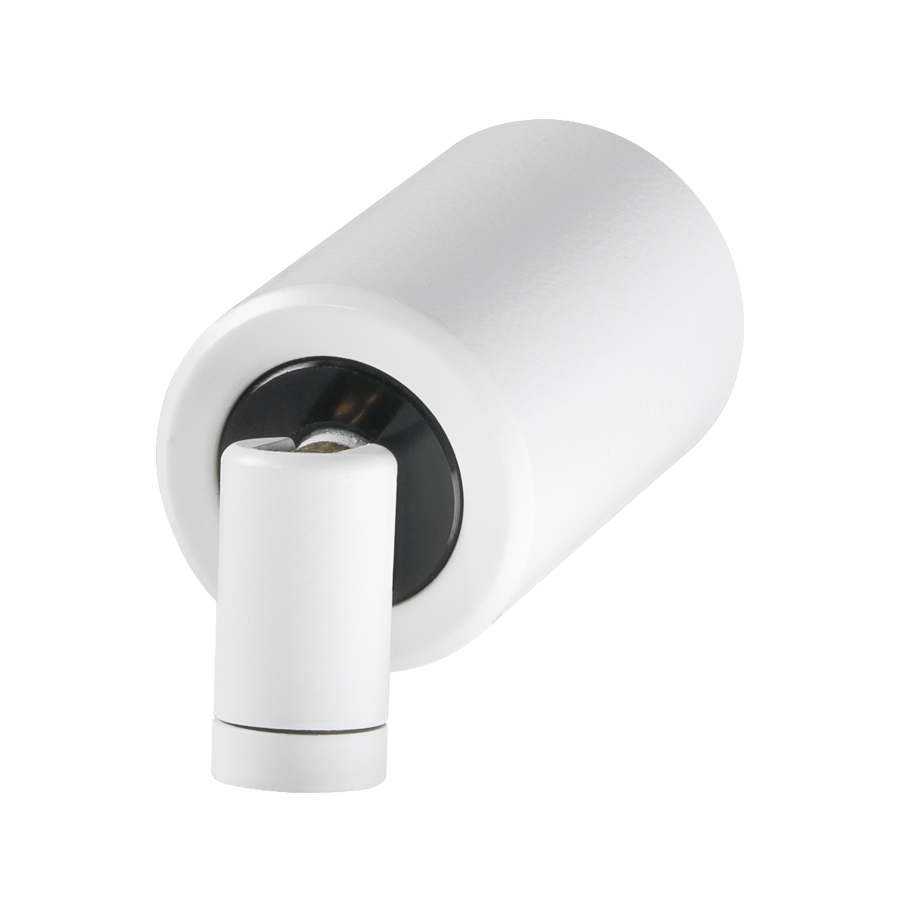

Krill 3.4

Projectors for indoor applications

projector for indoor applications - max 4.5W max 350mA - manual zoom lens, optical range: 18°—80° - ø30x52 mm

Generate code

Technical data

Print technical data

Updated to KI342010005R1N

Required installation accessories, not included
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • CB
  • EAC
  • lighting fixture with LED technology
  • appliance class III
  • gross weight
    0,075 g
  • IP40
  • PID
  • RAL finish on request
  • Casambi control
  • F
Installation projector for indoor applications
Power consumption max 4,5W
Power supply max 350mA
Lumen output at source 452 lm (3000K, 350mA)
Delivered lumen output 253 lm (3000K, 350mA, 80°)
Datasheet

Copied

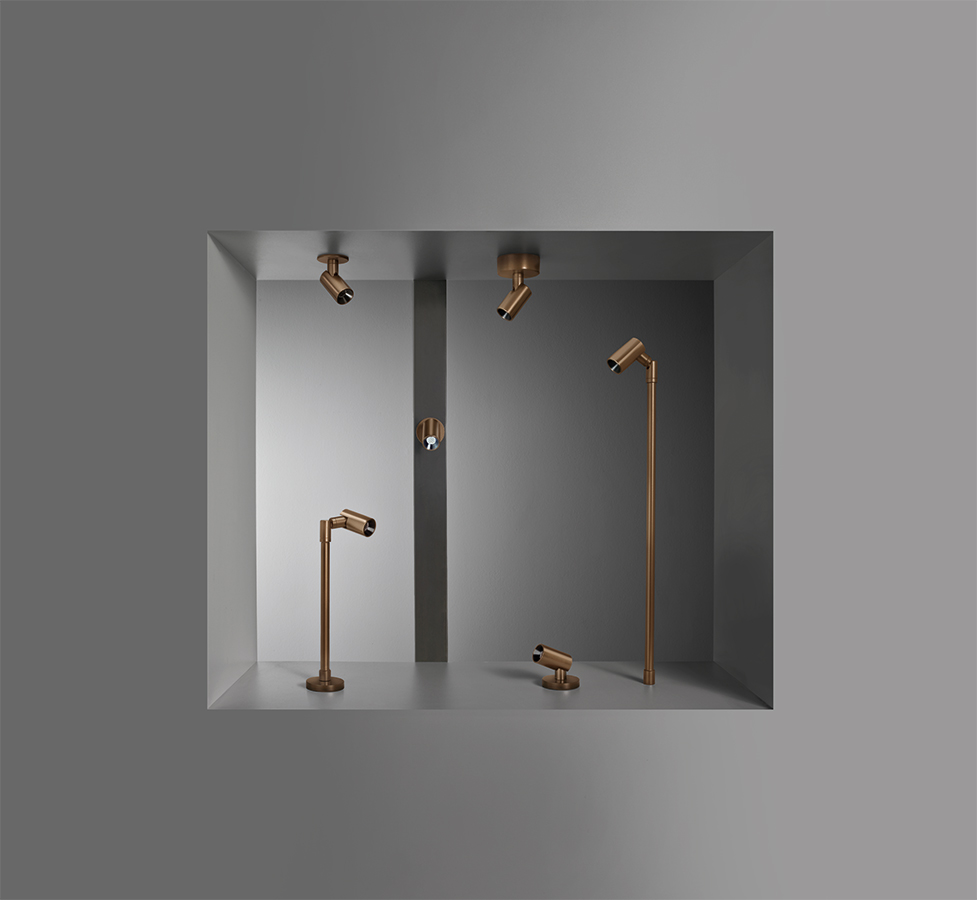

Mounting surface mounted (shop windows, display cabinets, shelves, ceiling, wall)
Number and type of LED 1 power LED High Intensity, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour 3000K

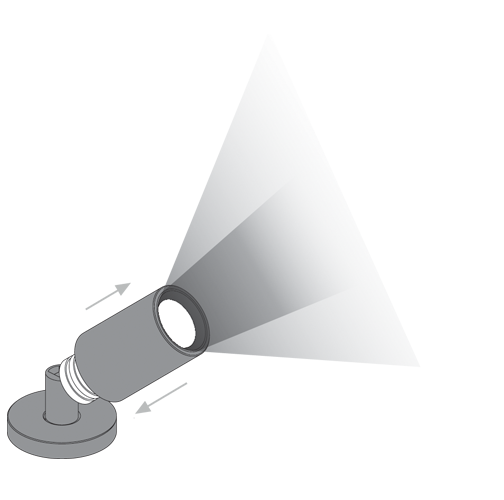

Optics optical range 18°—80°
CRI Colour Rendering Index >90
Body material body in anticorodal aluminium, joint in brass
Finishes black
Power supply unit power supply unit not included
Wiring series
Power cables includes 1.50 m PVC cable HT105° 2x0.20 Ø3.0 mm
Ingress protection IP40
Status Available

Read more

Close

Accessories and power supply units

Accessories (8)

Accessories for product code KI342010005R1N

Plates

Required installation accessories, not included

WDA00N

Fixing base

black
Required installation accessories, not included

WDA03N

Ceiling rose

black
Required installation accessories, not included

WDA04N

Magnetic plate

black

Retaining spring clips

Required installation accessories, not included

WGA08N

Retaining spring clip Ø30mm

black

Spikes and arms

WDA01N

Rigid arm - h 150 mm

black

Order together with the fixing base or the nipple

WDA02N

Rigid arm - h 300 mm

black

Order together with the fixing base or the nipple

Various accessories

Required installation accessories, not included

WGA01

Nipple coupler

Cables

Order together with the lighting fixture

WF0600

PVC cable HT105° 2x0,20 Ø3,0 mm, grey

your choice of length
Read more

Power supply units (17)

Power supply units for product code KI342010005R1N

A13350VL

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA constant current; max 8W ✓
Power4W
DimmeringCannot be dimmed
Power supply unit IPIP20

A16350IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA constant current; max 11W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67

A19220TC

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output100mA constant current; max 4,1W ✓
120mA constant current; max 5W ✓
140mA constant current; max 5,8W ✓
160mA constant current; max 6,6W ✓
180mA constant current; max 7,4W ✓
200mA constant current; max 8,3W ✓
220mA constant current; max 9,1W ✓
240mA constant current; max 10W ✓
260mA constant current; max 10,8W ✓
280mA constant current; max 11,6W ✓
300mA constant current; max 12,4W ✓
320mA constant current; max 13,2W ✓
340mA constant current; max 14,1W ✓
360mA constant current; max 15W ⚠
60mA constant current; max 2,5W ✓
80mA constant current; max 3,3W ✓
DimmeringON/OFF
Power supply unit IPIP20

A19350QL

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA constant current; max 15W ✓
DimmeringON/OFF
Power supply unit IPIP20

A312350IP67

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA constant current; max 17W ✓
DimmeringON/OFF
Power supply unit IPIP67

A312350QL

ON/OFF constant-current PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output350mA constant current; max 17W ✓
DimmeringON/OFF
Power supply unit IPIP20

ACUNI020T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output24Vdc; 16W ⚠
250mA constant current; max 13W ✓
350mA constant current; max 19W ✓
400mA constant current; max 20W ⚠
450mA constant current; max 20W ⚠
500mA constant current; max 20W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

ACUNI039T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output1050mA constant current; max 39W ⚠
350mA constant current; max 15W ✓
500mA constant current; max 21W ⚠
550mA constant current; max 23W ⚠
650mA constant current; max 27W ⚠
700mA constant current; max 29W ⚠
750mA constant current; max 31W ⚠
850mA constant current; max 35W ⚠
900mA constant current; max 37W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

ACUNI042T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output1000mA constant current; max 42W ⚠
1050mA constant current; max 42W ⚠
300mA constant current; max 13W ✓
350mA constant current; max 15W ✓
400mA constant current; max 18W ⚠
450mA constant current; max 20W ⚠
500mA constant current; max 22W ⚠
550mA constant current; max 24W ⚠
600mA constant current; max 27W ⚠
650mA constant current; max 29W ⚠
700mA constant current; max 31W ⚠
750mA constant current; max 32W ⚠
800mA constant current; max 33W ⚠
850mA constant current; max 35W ⚠
900mA constant current; max 38W ⚠
950mA constant current; max 40W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

ACUNIC30T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output250mA constant current; max 13W ⚠
280mA constant current; max 15W ⚠
310mA constant current; max 16,5W ✓
340mA constant current; max 18W ✓
370mA constant current; max 19,5W ⚠
400mA constant current; max 21W ⚠
430mA constant current; max 22,5W ⚠
460mA constant current; max 24W ⚠
490mA constant current; max 26W ⚠
520mA constant current; max 27,5W ⚠
550mA constant current; max 29W ⚠
580mA constant current; max 30W ⚠
610mA constant current; max 30W ⚠
640mA constant current; max 30W ⚠
670mA constant current; max 30W ⚠
700mA constant current; max 30W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

AD018350TLT1

Dimmable power supply unit with mains dimming

Input230Vac 50-60 Hz
Output350mA constant current; max 18W ⚠
DimmeringMains dimming, ON/OFF
Power supply unit IPIP20

AD020DALIT1

DALI dimmable power supply unit

Output24Vdc; 16W ⚠
250mA constant current; max 12W ⚠
350mA constant current; max 17W ✓
400mA constant current; max 19W ⚠
450mA constant current; max 20W ⚠
500mA constant current; max 20W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringDALI, ON/OFF
Power supply unit IPIP20

AD030DALIT1AM

DALI+PUSH dimmable power supply unit

Input230Vac 50-60 Hz
Output250mA constant current; max 13W ⚠
280mA constant current; max 15W ⚠
310mA constant current; max 16,5W ✓
340mA constant current; max 18W ✓
370mA constant current; max 20W ⚠
400mA constant current; max 21W ⚠
430mA constant current; max 23W ⚠
460mA constant current; max 25W ⚠
490mA constant current; max 26W ⚠
520mA constant current; max 26W ⚠
550mA constant current; max 27W ⚠
580mA constant current; max 29W ⚠
610mA constant current; max 30W ⚠
640mA constant current; max 30W ⚠
670mA constant current; max 30W ⚠
700mA constant current; max 30W ⚠
DimmeringPUSH, DALI, ON/OFF
Power supply unit IPIP20

AD032TLT1

Dimmable power supply unit

Input230Vac 50-60 Hz
Output12Vdc; 10W ⚠
24Vdc; 20W ⚠
28Vdc; 22W ⚠
350mA constant current; max 17W ✓
500mA constant current; max 24W ⚠
550mA constant current; max 25W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 32W ⚠
DimmeringPUSH, Mains dimming, ON/OFF
Power supply unit IPIP20

AD050DALIT1

DALI+PUSH+1-10V dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output1050mA constant current; max 50W ⚠
350mA constant current; max 25W ✓
500mA constant current; max 35W ⚠
550mA constant current; max 39W ⚠
650mA constant current; max 46W ⚠
700mA constant current; max 50W ⚠
750mA constant current; max 50W ⚠
850mA constant current; max 50W ⚠
900mA constant current; max 50W ⚠
Dimmering0/1-10V, PUSH, DALI, ON/OFF
Power supply unit IPIP20

AD050PUSHT1

1-10V+PUSH dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output1050mA constant current; max 50W ⚠
350mA constant current; max 25W ✓
500mA constant current; max 35W ⚠
550mA constant current; max 39W ⚠
650mA constant current; max 46W ⚠
700mA constant current; max 50W ⚠
750mA constant current; max 50W ⚠
850mA constant current; max 50W ⚠
900mA constant current; max 50W ⚠
Dimmering0/1-10V, PUSH, ON/OFF
Power supply unit IPIP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 11W ⚠
24Vdc; 20W ⚠
250mA constant current; max 13W ⚠
300mA constant current; max 16W ⚠
350mA constant current; max 18W ✓
400mA constant current; max 21W ⚠
450mA constant current; max 23W ⚠
500mA constant current; max 25W ⚠
550mA constant current; max 27W ⚠
600mA constant current; max 30W ⚠
650mA constant current; max 32W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 20W ⚠
800mA constant current; max 20W ⚠
850mA constant current; max 20W ⚠
900mA constant current; max 20W ⚠
Dimmering0/1-10V, PUSH, ON/OFF
Power supply unit IPIP20
Read more

Control gear (3)

Control gear for product code KI342010005R1N

ARCUNID2-01

Universal Sequencer - Low-voltage 4-channel controller with constant-current output

order in addition to PSU

Input24Vdc
48Vdc
Output

1 channel

With 24 Vdc input:; 1050mA constant current; max 20W ⚠
With 24 Vdc input:; 350mA constant current; max 6,7W ⚠
With 24 Vdc input:; 500mA constant current; max 9,5W ⚠
With 24 Vdc input:; 700mA constant current; max 13,3W ⚠
With 48 Vdc input:; 1050mA constant current; max 45W ⚠
With 48 Vdc input:; 350mA constant current; max 15,5W ✓
With 48 Vdc input:; 500mA constant current; max 21,5W ⚠
With 48 Vdc input:; 700mA constant current; max 30W ⚠

2 channels

With 24 Vdc input:; 1050mA constant current; max 40W ⚠
With 24 Vdc input:; 350mA constant current; max 13,3W ⚠
With 24 Vdc input:; 500mA constant current; max 19W ⚠
With 24 Vdc input:; 700mA constant current; max 26,6W ⚠
With 48 Vdc input:; 1050mA constant current; max 90,3W ⚠
With 48 Vdc input:; 350mA constant current; max 30W ⚠
With 48 Vdc input:; 500mA constant current; max 43W ⚠
With 48 Vdc input:; 700mA constant current; max 60W ⚠

3 channels

With 24 Vdc input:; 1050mA constant current; max 60W ⚠
With 24 Vdc input:; 350mA constant current; max 20W ⚠
With 24 Vdc input:; 500mA constant current; max 28,5W ⚠
With 24 Vdc input:; 700mA constant current; max 40W ⚠
With 48 Vdc input:; 1050mA constant current; max 135W ⚠
With 48 Vdc input:; 350mA constant current; max 45W ⚠
With 48 Vdc input:; 500mA constant current; max 64,5W ⚠
With 48 Vdc input:; 700mA constant current; max 90,3W ⚠

4 channels

With 24 Vdc input:; 1050mA constant current; max 80W ⚠
With 24 Vdc input:; 350mA constant current; max 26,6W ⚠
With 24 Vdc input:; 500mA constant current; max 38W ⚠
With 24 Vdc input:; 700mA constant current; max 53,2W ⚠
With 48 Vdc input:; 1050mA constant current; max 180W ⚠
With 48 Vdc input:; 350mA constant current; max 62W ⚠
With 48 Vdc input:; 500mA constant current; max 86W ⚠
With 48 Vdc input:; 700mA constant current; max 120W ⚠
Dimmering0/1-10V, PUSH, DALI (DT6), 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IPIP20

EC0CEN12443520

Low-voltage 4-channel controller with constant-current output (350mA) for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input24Vdc
12Vdc
Output

1 channel

With 12 Vdc input:; 350mA constant current; max 4,2W ⚠
With 24 Vdc input:; 350mA constant current; max 8,4W ✓

2 channels

With 12 Vdc input:; 350mA constant current; max 8,4W ⚠
With 24 Vdc input:; 350mA constant current; max 16,8W ⚠

3 channels

With 12 Vdc input:; 350mA constant current; max 12,6W ⚠
With 24 Vdc input:; 350mA constant current; max 25,2W ⚠

4 channels

With 12 Vdc input:; 350mA constant current; max 16,8W ⚠
With 24 Vdc input:; 350mA constant current; max 33,6W ⚠
DimmeringPUSH, Casambi
Power supply unit IPIP20

WFA024350

Converter with 350 mm cable

low-voltage converter to be used with a constant-voltage power supply unit

Input24Vdc
Output350mA constant current; max 8,4W ⚠
DimmeringPWM
Power supply unit IPIP20

Control input (1)

Versions
