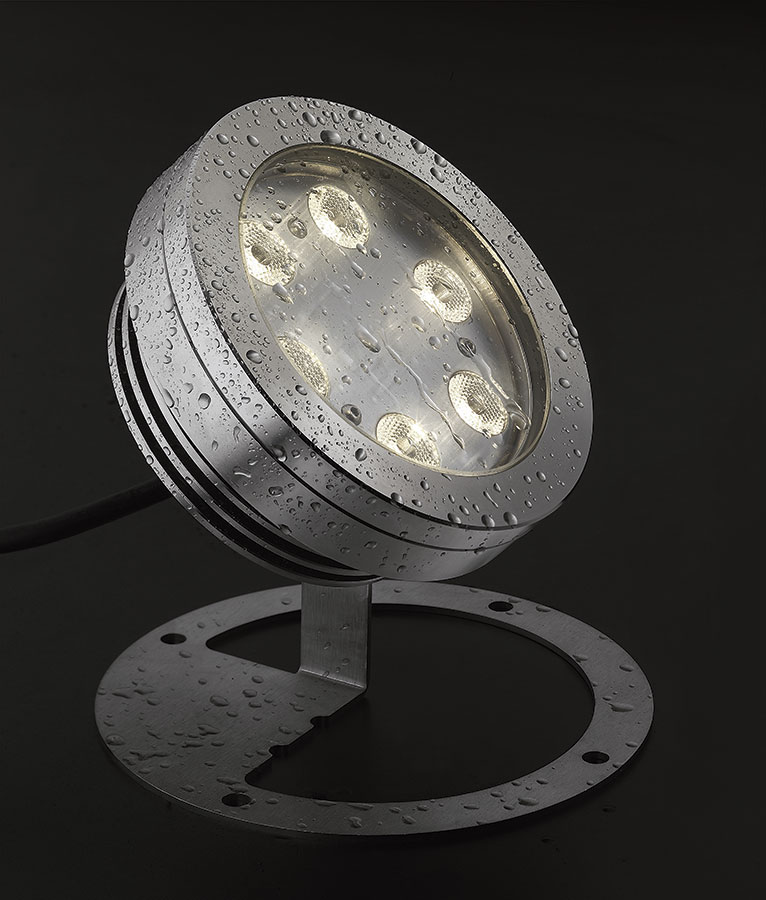

Spot 3.0 316L

Projectors for outdoor and underwater applications

projector for underwater applications - 12/18W 24Vdc, RGB: max 18W max 500mA - adjustable 150° - RGB

Generate code

Technical data

Print technical data
  • RGB
  • CE mark for the European Union
  • UKCA mark for Great Britain
  • EAC
  • BIS R-41103985
  • lighting fixture with LED technology
  • appliance class III
  • gross weight
    kg 3,05
  • IP68
  • IK09
  • IPS
  • Casambi control
  • F
Installation projector for outdoor and underwater applications
Power consumption 12W (6 power LEDs x 2W), 18W (9 power LEDs x 2W), RGB: max 18W (9 power LEDs x 2W)
Power supply 24Vdc; RGB: max 500mA
Lumen output at source 1308 lm (3000K, 18W),
791 lm, R: 291 lm G: 375 lm B: 125 lm (500mA),
872 lm (3000K, 12W)
Delivered lumen output 565 lm, R: 208 lm G: 268 lm B: 89 lm (500mA, 20°),
596 lm (3000K, 20°, 12W),
893 lm (3000K, 20°, 18W)
Datasheet

Copied
Mounting surface mounted (ceiling, wall, ground), max depth 10 m
Number and type of LED 6,9 power LEDs, 1/4 ANSI BIN (white LED colour)
RGB: 9 power LEDs
50 000h L90 B10 (Ta 25°C)
LED colour 2700K, 3000K, 4000K, 5000K, RGB, blue
Optics 10°, 20°, 40°
CRI Colour Rendering Index 80
Body material body and trim in AISI 316L stainless steel
Screen material screen in transparent, tempered extra-clear glass
Power supply unit power supply unit not included
Wiring parallel; RGB: series
Power cables includes 5 m neoprene cable H05RN-F 2x0,75/0,75 Ø6,3 mm,
RGB: includes 5 m FEP+RUB cable (equivalent to H05RN-F cable) 6x0,50/0,50 Ø6,3 mm
Ingress protection IP68
Impact resistance IK09
Notes version with elliptical optics available on request
Status Available

Read more

Close

Accessories and power supply units

Accessories (0)

Cables

Choose the power cable in the code generator

Power supply units (23)

ACUNI020T1

ON/OFF constant-current PSU

Input230Vac 50-60 Hz
Output24Vdc; 16W ✓
250mA constant current; max 13W ⚠
350mA constant current; max 19W ⚠
400mA constant current; max 20W ⚠
450mA constant current; max 20W ⚠
500mA constant current; max 20W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringCannot be dimmed
Power supply unit IPIP20

AD020DALIT1

DALI dimmable power supply unit

Output24Vdc; 16W ✓
250mA constant current; max 12W ⚠
350mA constant current; max 17W ⚠
400mA constant current; max 19W ⚠
450mA constant current; max 20W ⚠
500mA constant current; max 20W ⚠
550mA constant current; max 20W ⚠
600mA constant current; max 20W ⚠
700mA constant current; max 20W ⚠
DimmeringDALI
Power supply unit IPIP20

AD032TLT1

Dimmable power supply unit

Input230Vac 50-60 Hz
Output12Vdc; 10W ⚠
24Vdc; 20W ✓
28Vdc; 22W ⚠
350mA constant current; max 17W ⚠
500mA constant current; max 24W ⚠
550mA constant current; max 25W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 32W ⚠
DimmeringPUSH, Mains dimming
Power supply unit IPIP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output12Vdc; 11W ⚠
24Vdc; 20W ✓
250mA constant current; max 13W ⚠
300mA constant current; max 16W ⚠
350mA constant current; max 18W ⚠
400mA constant current; max 21W ⚠
450mA constant current; max 23W ⚠
500mA constant current; max 25W ⚠
550mA constant current; max 27W ⚠
600mA constant current; max 30W ⚠
650mA constant current; max 32W ⚠
700mA constant current; max 32W ⚠
750mA constant current; max 20W ⚠
800mA constant current; max 20W ⚠
850mA constant current; max 20W ⚠
900mA constant current; max 20W ⚠
Dimmering0/1-10V, PUSH
Power supply unit IPIP20

AR330500TC

Home RGB

Input230Vac 50-60 Hz
Output500mA constant current; max 36W ✓
DimmeringPUSH, DMX512, Stand alone
Power supply unit IPIP20

AV00002406020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
Power60W
DimmeringCannot be dimmed
Power supply unit IPIP20

AV00002412020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 120W ✓
Power120W
DimmeringCannot be dimmed
Power supply unit IPIP20

AV00002418020

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 180W ✓
Power180W
DimmeringCannot be dimmed
Power supply unit IPIP20

AV0D024V03066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 30W ✓
Power30W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V06066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
Power60W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V10066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 100W ✓
Power100W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V15066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 150W ✓
Power150W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V20066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 200W ✓
Power200W
DimmeringDALI-2
Power supply unit IPIP66

AV0D024V30066

DALI 2 dimmable power supply unit

Input230Vac 50-60 Hz
Output24Vdc; 300W ✓
Power300W
DimmeringDALI-2
Power supply unit IPIP66

AV24020IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 20W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24040IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 40W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24060IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 60W ✓
DimmeringCannot be dimmed
Power supply unit IPIP20

AV24060IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 60W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24100IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 100W ✓
DimmeringCannot be dimmed
Power supply unit IPIP20

AV24150IP20

ON/OFF constant-voltage PSU

Input230Vac 50-60 Hz
Output24Vdc; 150W ✓
Power150W
DimmeringCannot be dimmed
Power supply unit IPIP20

AV24150IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 150W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24240IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 240W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67

AV24320IP67

ON/OFF constant-voltage PSU

Input115-230Vac 50-60 Hz
230Vac 50-60 Hz
Output24Vdc; 320W ✓
DimmeringCannot be dimmed
Power supply unit IPIP67
Read more

Control gear (14)

ADV576DALIN1

Low-voltage dimmer

order in addition to PSU

Input12-24-48Vdc
OutputWith 12 Vdc input:; 12Vdc; 144W ⚠
With 24 Vdc input:; 24Vdc; 288W ✓
With 48 Vdc input:; 48Vdc; 576W ⚠
Dimmering0/1-10V, PUSH, DALI, 10kΩ potentiometer
Power supply unit IPIP20

AR330500TC

Home RGB

Input230Vac 50-60 Hz
Output500mA constant current; max 36W ✓
DimmeringPUSH, DMX512, Stand alone
Power supply unit IPIP20

ARC336350D1

Easy RGB - Low-voltage 3-channel controller with 350mA constant-current output

order in addition to PSU

Input12-24-48Vdc
OutputWith 12 Vdc input:; 350mA constant current; max 12,5W ✓
With 24 Vdc input:; 350mA constant current; max 25W ✓
With 48 Vdc input:; 350mA constant current; max 50W ✓
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARC336500D1

Easy RGB - Low-voltage 3-channel controller with 500mA constant-current output

order in addition to PSU

Input12-24-48Vdc
OutputWith 12 Vdc input:; 500mA constant current; max 18W ⚠
With 24 Vdc input:; 500mA constant current; max 36W ✓
With 48 Vdc input:; 500mA constant current; max 72W ✓
DimmeringPUSH, Stand alone
Power supply unit IPIP20

ARCUNID2-01

Universal Sequencer - Low-voltage 4-channel controller with constant-current output

order in addition to PSU

Input24Vdc
48Vdc
Output

1 channel

With 24 Vdc input:; 1050mA constant current; max 20W ⚠
With 24 Vdc input:; 350mA constant current; max 6,7W ⚠
With 24 Vdc input:; 500mA constant current; max 9,5W ⚠
With 24 Vdc input:; 700mA constant current; max 13,3W ⚠
With 48 Vdc input:; 1050mA constant current; max 45W ⚠
With 48 Vdc input:; 350mA constant current; max 15,5W ⚠
With 48 Vdc input:; 500mA constant current; max 21,5W ⚠
With 48 Vdc input:; 700mA constant current; max 30W ⚠

2 channels

With 24 Vdc input:; 1050mA constant current; max 40W ⚠
With 24 Vdc input:; 350mA constant current; max 13,3W ⚠
With 24 Vdc input:; 500mA constant current; max 19W ⚠
With 24 Vdc input:; 700mA constant current; max 26,6W ⚠
With 48 Vdc input:; 1050mA constant current; max 90,3W ⚠
With 48 Vdc input:; 350mA constant current; max 30W ⚠
With 48 Vdc input:; 500mA constant current; max 43W ⚠
With 48 Vdc input:; 700mA constant current; max 60W ⚠

3 channels

With 24 Vdc input:; 1050mA constant current; max 60W ⚠
With 24 Vdc input:; 350mA constant current; max 20W ⚠
With 24 Vdc input:; 500mA constant current; max 28,5W ⚠
With 24 Vdc input:; 700mA constant current; max 40W ⚠
With 48 Vdc input:; 1050mA constant current; max 135W ⚠
With 48 Vdc input:; 350mA constant current; max 45W ⚠
With 48 Vdc input:; 500mA constant current; max 64,5W ⚠
With 48 Vdc input:; 700mA constant current; max 90,3W ⚠

4 channels

With 24 Vdc input:; 1050mA constant current; max 80W ⚠
With 24 Vdc input:; 350mA constant current; max 26,6W ⚠
With 24 Vdc input:; 500mA constant current; max 38W ⚠
With 24 Vdc input:; 700mA constant current; max 53,2W ⚠
With 48 Vdc input:; 1050mA constant current; max 180W ⚠
With 48 Vdc input:; 350mA constant current; max 62W ✓
With 48 Vdc input:; 500mA constant current; max 86W ✓
With 48 Vdc input:; 700mA constant current; max 120W ⚠
Dimmering0/1-10V, PUSH, DALI (DT6), 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IPIP20

ARVUNID2-01

Universal sequencer - Low-voltage 4-channel controller with constant-voltage output

order in addition to PSU

Input12-24-48Vdc
Output

1 channel

With 12 Vdc input:; 12Vdc; 60W ⚠
With 24 Vdc input:; 24Vdc; 120W ✓
With 48 Vdc input:; 48Vdc; 240W ⚠

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠
With 48 Vdc input:; 48Vdc; 480W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 180W ⚠
With 24 Vdc input:; 24Vdc; 360W ⚠
With 48 Vdc input:; 48Vdc; 720W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 192W ⚠
With 24 Vdc input:; 24Vdc; 384W ⚠
With 48 Vdc input:; 48Vdc; 768W ⚠
Dimmering0/1-10V, PUSH, DALI (DT6), ON/OFF, 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IPIP20

EC0CEN12445020

Low-voltage 4-channel controller with constant-current output (500mA) for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input24Vdc
12Vdc
Output

1 channel

With 12 Vdc input:; 500mA constant current; max 6W ⚠
With 24 Vdc input:; 500mA constant current; max 12W ⚠

2 channels

With 12 Vdc input:; 500mA constant current; max 12W ⚠
With 24 Vdc input:; 500mA constant current; max 24W ⚠

3 channels

With 12 Vdc input:; 500mA constant current; max 18W ⚠
With 24 Vdc input:; 500mA constant current; max 36W ✓

4 channels

With 12 Vdc input:; 500mA constant current; max 24W ✓
With 24 Vdc input:; 500mA constant current; max 48W ✓
DimmeringPUSH, Casambi
Power supply unit IPIP20

EC0CEN12445A20

Low-voltage 4-channel controller with constant-voltage output for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input12-24Vdc
24Vdc
Output

1 channel

With 12 Vdc input:; 12Vdc; 60W ⚠
With 24 Vdc input:; 24Vdc; 120W ✓

2 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

3 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠

4 channels

With 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ⚠
DimmeringPUSH, Casambi
Power supply unit IPIP20

EC0CEN1244DA20

Low-voltage dimmer for CASAMBI

order in addition to PSU

Input12-24Vdc
24Vdc
OutputWith 12 Vdc input:; 12Vdc; 120W ⚠
With 24 Vdc input:; 24Vdc; 240W ✓
DimmeringPUSH, Casambi
Power supply unit IPIP20

ECCTS1284CC20

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
to be used with TOUCH03L1, TOUCH02L1 e ECCTR1244CV20

Input12-24-48Vdc
Output1050mA constant current; max 201,6W ⚠
350mA constant current; max 67,2W ✓
700mA constant current; max 134,4W ⚠
DimmeringRadio frequency
Power supply unit IPIP20

TLR04M-350-500

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input12-24-36Vdc
OutputWith 12 Vdc input:; 350mA constant current; max 12,6W ✓
With 12 Vdc input:; 500mA constant current; max 18W ✓
With 24 Vdc input:; 350mA constant current; max 25,2W ✓
With 24 Vdc input:; 500mA constant current; max 36W ✓
With 36 Vdc input:; 350mA constant current; max 37,8W ✓
With 36 Vdc input:; 500mA constant current; max 54W ✓
DimmeringPUSH, Stand alone
Power supply unit IPIP20

TLR04M-350-700

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input12-24-36Vdc
OutputWith 12 Vdc input:; 350mA constant current; max 12,6W ✓
With 12 Vdc input:; 700mA constant current; max 25,2W ⚠
With 24 Vdc input:; 350mA constant current; max 25,2W ✓
With 24 Vdc input:; 700mA constant current; max 50,4W ⚠
With 36 Vdc input:; 350mA constant current; max 37,8W ✓
With 36 Vdc input:; 700mA constant current; max 75,6W ⚠
DimmeringPUSH, Stand alone
Power supply unit IPIP20

TLR05S-350

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input12-24-36Vdc
OutputWith 12 Vdc input:; 350mA constant current; max 12,6W ✓
With 24 Vdc input:; 350mA constant current; max 25,2W ✓
With 36 Vdc input:; 350mA constant current; max 37,8W ✓
DimmeringCannot be dimmed
Power supply unit IPIP20

TLR05S-500

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input12-24-36Vdc
OutputWith 12 Vdc input:; 500mA constant current; max 18W ⚠
With 24 Vdc input:; 500mA constant current; max 36W ✓
With 36 Vdc input:; 500mA constant current; max 54W ✓
DimmeringCannot be dimmed
Power supply unit IPIP20
Read more

Control input (11)

AE01350T1

Emergency module integrated

Input220─240Vac 50─60Hz
Outputmax 350mA 58Vdc max
Ingress protectionIP20
Dimensions35x47x166 mm, 185 g
Cutout dimensionsØ58 mm

EC0TIM12840020

Timer for CASAMBI

Input12-48 Vdc
Ingress protectionIP20
Dimensions45x58x25 mm, 40g

ECPNL2301DM20

Touch-screen device

Required outer casing not included

Input115-230 Vac 50-60Hz
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions178x33x48 mm 230 g
Controltouch RGBW

TLC08

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC09

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

InputCR2450 battery
Output433,92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm

TLC15

1-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40m indoors)

TLC16

2-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

InputCR2450 battery
Output433.92 MHz
Ingress protectionIP20
Dimensions40x40x10 mm
Range100 m (40 m indoors)

TLR07

2-channel receiver for TLC15, TLC16, TLC17 remote control

(1/2 NO push buttons)

Input110-230Vac 50/60Hz
Output2 clean contacts
Ingress protectionIP20
Dimensions58x43x21 mm
Cutout dimensionsØ50 mm

TOUCH02L1

Single-zone touch-screen device

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
ControlTouch RGBW

TOUCH03L1

4-zone touch-screen device with memory

Required outer casing not included WC0302

Input100—240Vac
OutputDMX512 bus, WiFi, RF
Ingress protectionIP20
Dimensions86x86x36 mm 225 g
Controltouch RGBW
Read more
