Pivot 1.8

Projectors for outdoor applications

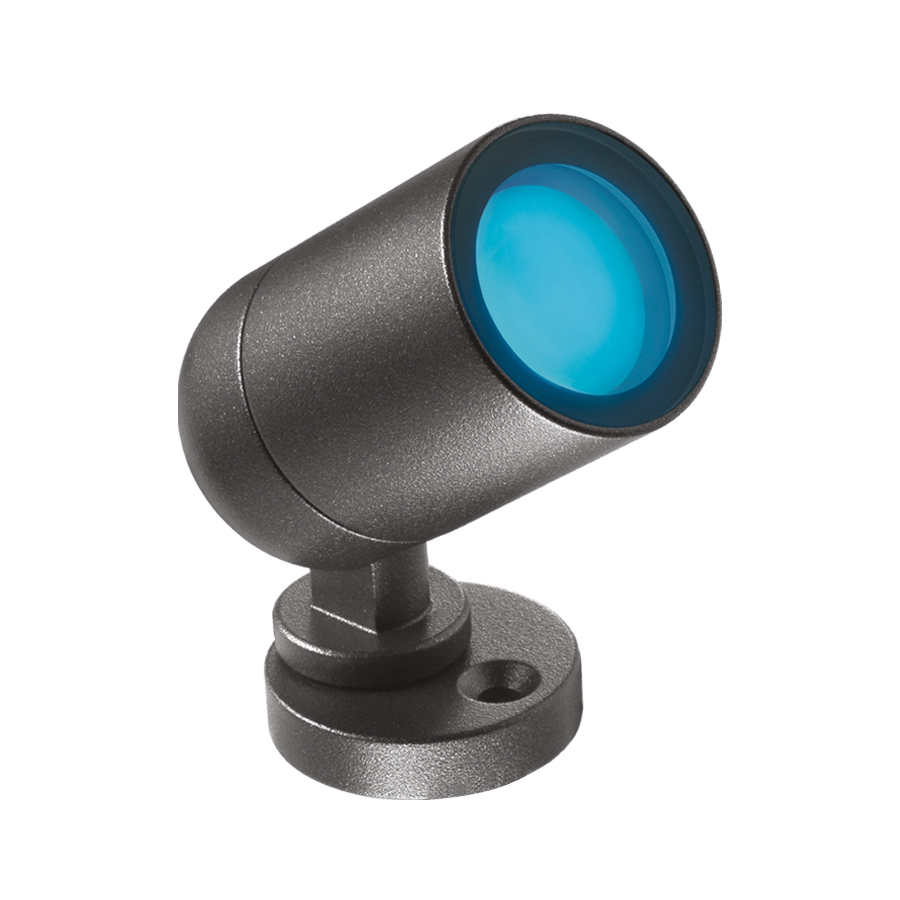

projector for outdoor applications - max 4.5W max 500mA - Ø40x75 mm - RGB

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

RAL finishes

Technical data

Print technical data

kg 0,40
IP66
IK07

Installation	projector for outdoor applications
Power consumption	max 4,5W
Power supply	max 500mA
Lumen output at source	201 lm, R: 50 lm G: 111 lm B: 40 lm (500mA)
Delivered lumen output	154 lm, R: 43 lm G: 84 lm B: 27 lm (500mA, 33°)
Datasheet	Pivot 1.8 projector for outdoor applications; surface mounted (ceiling, wall, ground, spike, strap); Power consumption: max 4,5W; Power supply: max 500mA; Lumen output at source: 201 lm, R: 50 lm G: 111 lm B: 40 lm (500mA); Delivered lumen output: 154 lm, R: 43 lm G: 84 lm B: 27 lm (500mA, 33°); 3 power LEDs, 50 000h L90 B10 (Ta 25°C); LED colour: RGB; Optics: 20°, 33°, 45°, 58°, 22°x46°, 46°x22°: optical system consisting of three deep-set, high-efficiency TIR microlenses combined with a high-quality technical filter; Body material: body made of ANTICORODAL EN AW 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe; Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9003), jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, grey anodized aluminium finish created with anodizing process to improve the resistance to corrosion, black anodized aluminium finish obtained by electro-colouring to give the product better heat dissipation and the material corrosion resistance, cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray., copper finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray; RAL finish on request; Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches; Seals: the silicone rubber gaskets guarantee maximum resistance to UV rays and unchanging mechanical characteristics over time; power supply unit not included; Wiring: series; includes 1.50/5/10/15/20 m PVC cable FROR 6x0.25 Ø5.0 mm; Ingress protection: IP66; Impact resistance: IK07; Operating temperature: -20°C — +45°C; Glow wire test: 960°C; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: 400 g; Dimensions: Ø40x75 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: honeycomb louvre, WB03105 Standard snoot - jasper green, WB0310A Standard snoot - anodized grey, WB0310E Standard snoot - white, WB0310H Standard snoot - anthracite, WB0310N Standard snoot - black anodized, WB0310T Standard snoot - cor-ten, WB0310U Standard snoot - copper, WB03115 Asymmetrical snoot - jasper green, WB0311A Asymmetrical snoot - anodized grey, WB0311E Asymmetrical snoot - white, WB0311H Asymmetrical snoot - anthracite, WB0311N Asymmetrical snoot - black anodized, WB0311T Asymmetrical snoot - cor-ten, WB0311U Asymmetrical snoot - copper, WP0100 Spike for in-ground installation, WP1004 Fastener strap - 5 m; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionPivot 1.8 projector for outdoor applications surface mounted (ceiling, wall, ground, spike, strap) Power consumption: max 4,5W Power supply: max 500mA Lumen output at source: 201 lm, R: 50 lm G: 111 lm B: 40 lm (500mA) Delivered lumen output: 154 lm, R: 43 lm G: 84 lm B: 27 lm (500mA, 33°) 3 power LEDs, 50 000h L90 B10 (Ta 25°C) LED colour: RGB Optics: 20°, 33°, 45°, 58°, 22°x46°, 46°x22°: optical system consisting of three deep-set, high-efficiency TIR microlenses combined with a high-quality technical filter Body material: body made of ANTICORODAL EN AW 6082 low-copper-content aluminium alloy for excellent resistance to corrosion, made entirely on a CNC lathe Finishes: anthracite finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, white finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray (RAL 9003), jasper green finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray, grey anodized aluminium finish created with anodizing process to improve the resistance to corrosion, black anodized aluminium finish obtained by electro-colouring to give the product better heat dissipation and the material corrosion resistance, cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray., copper finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray RAL finish on request Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches Seals: the silicone rubber gaskets guarantee maximum resistance to UV rays and unchanging mechanical characteristics over time power supply unit not included Wiring: series includes 1.50/5/10/15/20 m PVC cable FROR 6x0.25 Ø5.0 mm Ingress protection: IP66 Impact resistance: IK07 Operating temperature: -20°C — +45°C Glow wire test: 960°C Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: 400 g Dimensions: Ø40x75 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: honeycomb louvre, WB03105 Standard snoot - jasper green, WB0310A Standard snoot - anodized grey, WB0310E Standard snoot - white, WB0310H Standard snoot - anthracite, WB0310N Standard snoot - black anodized, WB0310T Standard snoot - cor-ten, WB0310U Standard snoot - copper, WB03115 Asymmetrical snoot - jasper green, WB0311A Asymmetrical snoot - anodized grey, WB0311E Asymmetrical snoot - white, WB0311H Asymmetrical snoot - anthracite, WB0311N Asymmetrical snoot - black anodized, WB0311T Asymmetrical snoot - cor-ten, WB0311U Asymmetrical snoot - copper, WP0100 Spike for in-ground installation, WP1004 Fastener strap - 5 m tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, ground, spike, strap)
Number and type of LED	3 power LEDs, 50 000h L90 B10 (Ta 25°C)
LED colour	RGB
Optics	20°, 33°, 45°, 58°, 22°x46°, 46°x22°
Body material	body in anticorodal aluminium
Screen material	screen in serigraphed, transparent, tempered extra-clear glass
Finishes	anthracite, white, jasper green, anodized grey, anodized black, cor-ten, copper
Power supply unit	power supply unit not included
Wiring	series
Power cables	includes 1.50/5/10/15/20 m PVC cable FROR 6x0.25 Ø5.0 mm
Ingress protection	IP66
Impact resistance	IK07
Status	Available

Read more

Close

Download

See all downloads

Accessories and power supply units

Accessories (17)

Spikes and arms

WP0100

Spike for in-ground installation

Honeycomb louvre

Add the optical accessory in the code generator

honeycomb louvre

built into the lighting fixture

Snoots

WB03105 Standard snoot - jasper green	WB0310A Standard snoot - anodized grey
WB0310E Standard snoot - white	WB0310H Standard snoot - anthracite
WB0310N Standard snoot - black anodized	WB0310T Standard snoot - cor-ten
WB0310U Standard snoot - copper	WB03115 Asymmetrical snoot - jasper green
WB0311A Asymmetrical snoot - anodized grey	WB0311E Asymmetrical snoot - white
WB0311H Asymmetrical snoot - anthracite	WB0311N Asymmetrical snoot - black anodized
WB0311T Asymmetrical snoot - cor-ten	WB0311U Asymmetrical snoot - copper

Various accessories

WP1004

Fastener strap - 5 m

Cables

Choose the power cable in the code generator

Power supply units (35)

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 16W 250mA constant current; max 13W 350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	12Vdc; 10W 24Vdc; 20W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 11W 24Vdc; 20W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 500mA constant current; max 25W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH
Power supply unit IP	IP20

AR330350TC

Home RGB

Input	230Vac 50-60 Hz
Output	350mA constant current; max 36W
Dimmering	PUSH, DMX512, Stand alone
Power supply unit IP	IP20

AR330500TC

Home RGB

Input	230Vac 50-60 Hz
Output	500mA constant current; max 36W
Dimmering	PUSH, DMX512, Stand alone
Power supply unit IP	IP20

AV00002406020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV00002412020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 120W
Power	120W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV00002418020

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 180W
Power	180W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV0D024V03066

DALI 2 dimmable power supply unit

Input	115-230Vac 50-60 Hz
Output	24Vdc; 30W
Power	30W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V06066

DALI 2 dimmable power supply unit

Input	115-230Vac 50-60 Hz
Output	24Vdc; 60W
Power	60W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V10066

DALI 2 dimmable power supply unit

Input	115-230Vac 50-60 Hz
Output	24Vdc; 100W
Power	100W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V15066

DALI 2 dimmable power supply unit

Input	115-230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V20066

DALI 2 dimmable power supply unit

Input	115-230Vac 50-60 Hz
Output	24Vdc; 200W
Power	200W
Dimmering	DALI-2
Power supply unit IP	IP66

AV0D024V30066

DALI 2 dimmable power supply unit

Input	115-230Vac 50-60 Hz
Output	24Vdc; 300W
Power	300W
Dimmering	DALI-2
Power supply unit IP	IP66

AV12020IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	12Vdc; 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV12040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 40W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV12060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz
Output	12Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV12150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 132W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV12192IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 192W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24008IP54

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 8W
Dimmering	Cannot be dimmed
Power supply unit IP	IP54

AV24010IP20

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 10W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24020IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24040IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 40W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24060IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24100IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 100W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 150W
Power	150W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV24150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 150W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 240W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV24320IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	24Vdc; 320W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV36060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	36Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV48060IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 60W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV48150IP20

ON/OFF constant-voltage PSU

Input	230Vac 50-60 Hz
Output	48Vdc; 150W
Power	150W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AV48150IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 150W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

AV48240IP67

ON/OFF constant-voltage PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	48Vdc; 240W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

Control gear (12)

AR330350TC

Home RGB

Input	230Vac 50-60 Hz
Output	350mA constant current; max 36W
Dimmering	PUSH, DMX512, Stand alone
Power supply unit IP	IP20

AR330500TC

Home RGB

Input	230Vac 50-60 Hz
Output	500mA constant current; max 36W
Dimmering	PUSH, DMX512, Stand alone
Power supply unit IP	IP20

ARC336350D1

Easy RGB - Low-voltage 3-channel controller with 350mA constant-current output

order in addition to PSU

Input	12-24-48Vdc
Output	With 12 Vdc input:; 350mA constant current; max 12,5W With 24 Vdc input:; 350mA constant current; max 25W With 48 Vdc input:; 350mA constant current; max 50W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

ARC336500D1

Easy RGB - Low-voltage 3-channel controller with 500mA constant-current output

order in addition to PSU

Input	12-24-48Vdc
Output	With 12 Vdc input:; 500mA constant current; max 18W With 24 Vdc input:; 500mA constant current; max 36W With 48 Vdc input:; 500mA constant current; max 72W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

ARCUNID2-01

Universal Sequencer - Low-voltage 4-channel controller with constant-current output

order in addition to PSU

Input	24Vdc 48Vdc
Output	1 channel With 24 Vdc input:; 1050mA constant current; max 20W With 24 Vdc input:; 350mA constant current; max 6,7W With 24 Vdc input:; 500mA constant current; max 9,5W With 24 Vdc input:; 700mA constant current; max 13,3W With 48 Vdc input:; 1050mA constant current; max 45W With 48 Vdc input:; 350mA constant current; max 15,5W With 48 Vdc input:; 500mA constant current; max 21,5W With 48 Vdc input:; 700mA constant current; max 30W 2 channels With 24 Vdc input:; 1050mA constant current; max 40W With 24 Vdc input:; 350mA constant current; max 13,3W With 24 Vdc input:; 500mA constant current; max 19W With 24 Vdc input:; 700mA constant current; max 26,6W With 48 Vdc input:; 1050mA constant current; max 90,3W With 48 Vdc input:; 350mA constant current; max 30W With 48 Vdc input:; 500mA constant current; max 43W With 48 Vdc input:; 700mA constant current; max 60W 3 channels With 24 Vdc input:; 1050mA constant current; max 60W With 24 Vdc input:; 350mA constant current; max 20W With 24 Vdc input:; 500mA constant current; max 28,5W With 24 Vdc input:; 700mA constant current; max 40W With 48 Vdc input:; 1050mA constant current; max 135W With 48 Vdc input:; 350mA constant current; max 45W With 48 Vdc input:; 500mA constant current; max 64,5W With 48 Vdc input:; 700mA constant current; max 90,3W 4 channels With 24 Vdc input:; 1050mA constant current; max 80W With 24 Vdc input:; 350mA constant current; max 26,6W With 24 Vdc input:; 500mA constant current; max 38W With 24 Vdc input:; 700mA constant current; max 53,2W With 48 Vdc input:; 1050mA constant current; max 180W With 48 Vdc input:; 350mA constant current; max 62W With 48 Vdc input:; 500mA constant current; max 86W With 48 Vdc input:; 700mA constant current; max 120W
Dimmering	0/1-10V, PUSH, DALI (DT6), 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IP	IP20

EC0CEN12443520

Low-voltage 4-channel controller with constant-current output (350mA) for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	24Vdc 12Vdc
Output	1 channel With 12 Vdc input:; 350mA constant current; max 4,2W With 24 Vdc input:; 350mA constant current; max 8,4W 2 channels With 12 Vdc input:; 350mA constant current; max 8,4W With 24 Vdc input:; 350mA constant current; max 16,8W 3 channels With 12 Vdc input:; 350mA constant current; max 12,6W With 24 Vdc input:; 350mA constant current; max 25,2W 4 channels With 12 Vdc input:; 350mA constant current; max 16,8W With 24 Vdc input:; 350mA constant current; max 33,6W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

EC0CEN12445020

Low-voltage 4-channel controller with constant-current output (500mA) for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	24Vdc 12Vdc
Output	1 channel With 12 Vdc input:; 500mA constant current; max 6W With 24 Vdc input:; 500mA constant current; max 12W 2 channels With 12 Vdc input:; 500mA constant current; max 12W With 24 Vdc input:; 500mA constant current; max 24W 3 channels With 12 Vdc input:; 500mA constant current; max 18W With 24 Vdc input:; 500mA constant current; max 36W 4 channels With 12 Vdc input:; 500mA constant current; max 24W With 24 Vdc input:; 500mA constant current; max 48W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

ECCTS1284CC20

RGB/RGBW controller with integrated 4-channel receiver

order in addition to PSU
to be used with TOUCH03L1, TOUCH02L1 e ECCTR1244CV20

Input	12-24-48Vdc
Output	1050mA constant current; max 201,6W 350mA constant current; max 67,2W 700mA constant current; max 134,4W
Dimmering	Radio frequency
Power supply unit IP	IP20

TLR04M-350-500

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input	12-24-36Vdc
Output	With 12 Vdc input:; 350mA constant current; max 12,6W With 12 Vdc input:; 500mA constant current; max 18W With 24 Vdc input:; 350mA constant current; max 25,2W With 24 Vdc input:; 500mA constant current; max 36W With 36 Vdc input:; 350mA constant current; max 37,8W With 36 Vdc input:; 500mA constant current; max 54W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

TLR04M-350-700

RGB controller with integrated 3-channel receiver

order in addition to PSU

Input	12-24-36Vdc
Output	With 12 Vdc input:; 350mA constant current; max 12,6W With 12 Vdc input:; 700mA constant current; max 25,2W With 24 Vdc input:; 350mA constant current; max 25,2W With 24 Vdc input:; 700mA constant current; max 50,4W With 36 Vdc input:; 350mA constant current; max 37,8W With 36 Vdc input:; 700mA constant current; max 75,6W
Dimmering	PUSH, Stand alone
Power supply unit IP	IP20

TLR05S-350

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input	12-24-36Vdc
Output	With 12 Vdc input:; 350mA constant current; max 12,6W With 24 Vdc input:; 350mA constant current; max 25,2W With 36 Vdc input:; 350mA constant current; max 37,8W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

TLR05S-500

Slave for receiver TLR04M-350-500, TLR04M-350-700

Input	12-24-36Vdc
Output	With 12 Vdc input:; 500mA constant current; max 18W With 24 Vdc input:; 500mA constant current; max 36W With 36 Vdc input:; 500mA constant current; max 54W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

Control input (10)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm

EC0TIM12840020

Timer for CASAMBI

Input	12-48 Vdc
Ingress protection	IP20
Dimensions	45x58x25 mm, 40g

ECPNL2301DM20

Touch-screen device

Required outer casing not included

Input	115-230 Vac 50-60Hz
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	178x33x48 mm 230 g
Control	touch RGBW

TLC08

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLC09

Remote control for TLR02-01, TLR04M-350-500 and TLR04M-350-700 controllers

Input	CR2450 battery
Output	433,92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm

TLC15

1-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40m indoors)

TLC16

2-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TLC17

4-channel remote control for TLR07

Input	CR2450 battery
Output	433.92 MHz
Ingress protection	IP20
Dimensions	40x40x10 mm
Range	100 m (40 m indoors)

TOUCH02L1

Single-zone touch-screen device

Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	Touch RGBW

TOUCH03L1

4-zone touch-screen device with memory

Required outer casing not included WC0302

Input	100—240Vac
Output	DMX512 bus, WiFi, RF
Ingress protection	IP20
Dimensions	86x86x36 mm 225 g
Control	touch RGBW

Projects

Versions

Pivot B
3 products
