River 1.0

Linear profiles for outdoor applications

linear profile for outdoor applications - 20W 230Vac - with optics - 500 mm - pitch 50

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Built-in DALI control

Technical data

Print technical data

Updated to RV10105LV

kg 2000 - kN 20
kg 3,35
IP67
IK09

Installation	linear profile for outdoor applications
Power consumption	20W
Power supply	230Vac
Lumen output at source	1450 lm (3000K)
Delivered lumen output	1050 lm (3000K, 30°)
Datasheet	River 1.0 code: RV10105LV linear profile for outdoor applications; drive-over up to 2000 kg; recessed (wall, floor); Power consumption: 20W; Power supply: 230Vac; Lumen output at source: 1450 lm (3000K); Delivered lumen output: 1050 lm (3000K, 30°); 10 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C); LED colour: 3000K; Optics: 47°; CRI Colour Rendering Index: 80; Body material: body in anodized aluminium; Screen material: screen in tempered, transparent glass; built-in power supply unit; includes 1.5 m neoprene cable H07RN-F 3x1.0 Ø9.3 mm; Ingress protection: IP67; Impact resistance: IK09; DALI and 0/1-10V versions, and in/out connection, available on request, Casambi-compatible version, controllable with the Casambi app, available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; Operating temperature: -20°C — +45°C; Maximum device temperature: 45°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 3350 g; Dimensions: 500x56x116 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WC6050 Outer casing - 503 mm, WN6005 Alignment kit for outer casing; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionRiver 1.0 code: RV10105LV linear profile for outdoor applications drive-over up to 2000 kg recessed (wall, floor) Power consumption: 20W Power supply: 230Vac Lumen output at source: 1450 lm (3000K) Delivered lumen output: 1050 lm (3000K, 30°) 10 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C) LED colour: 3000K Optics: 47° CRI Colour Rendering Index: 80 Body material: body in anodized aluminium Screen material: screen in tempered, transparent glass built-in power supply unit includes 1.5 m neoprene cable H07RN-F 3x1.0 Ø9.3 mm Ingress protection: IP67 Impact resistance: IK09 DALI and 0/1-10V versions, and in/out connection, available on request, Casambi-compatible version, controllable with the Casambi app, available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content Operating temperature: -20°C — +45°C Maximum device temperature: 45°C (Ta 25°C) Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 3350 g Dimensions: 500x56x116 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WC6050 Outer casing - 503 mm, WN6005 Alignment kit for outer casing tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (wall, floor)
Number and type of LED	10 power LEDs, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C)
LED colour	3000K
Optics	47°
CRI Colour Rendering Index	80
Body material	body in anodized aluminium
Screen material	screen in transparent, tempered glass
Power supply unit	built-in power supply unit
Power cables	includes 1.5 m neoprene cable H07RN-F 3x1.0 Ø9.3 mm
Ingress protection	IP67
Impact resistance	IK09
Notes	DALI and 0/1-10V versions, and in/out connection, available on request, Casambi-compatible version, controllable with the Casambi app, available on request
Status	Product being discontinued

Read more

Close

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT Type
- Generic, for the product River 1.0
- Specific, for code RV10105LV
DXF Technical drawing
LDT Photometric file Type
- Generic, for the product River 1.0
- Specific, for code RV10105LV
IES Photometric file Type
- Generic, for the product River 1.0
- Specific, for code RV10105LV
EU declaration of conformity

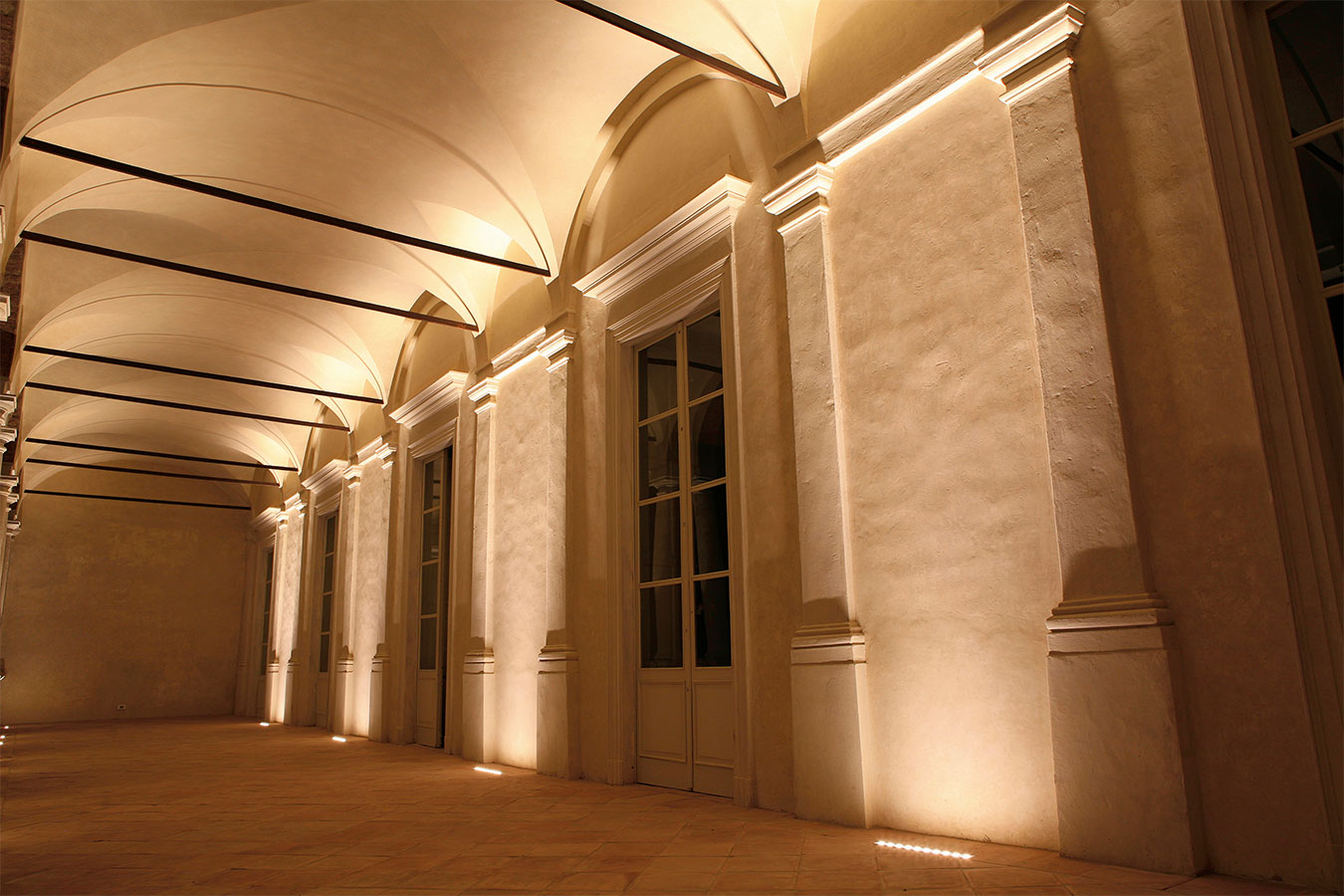

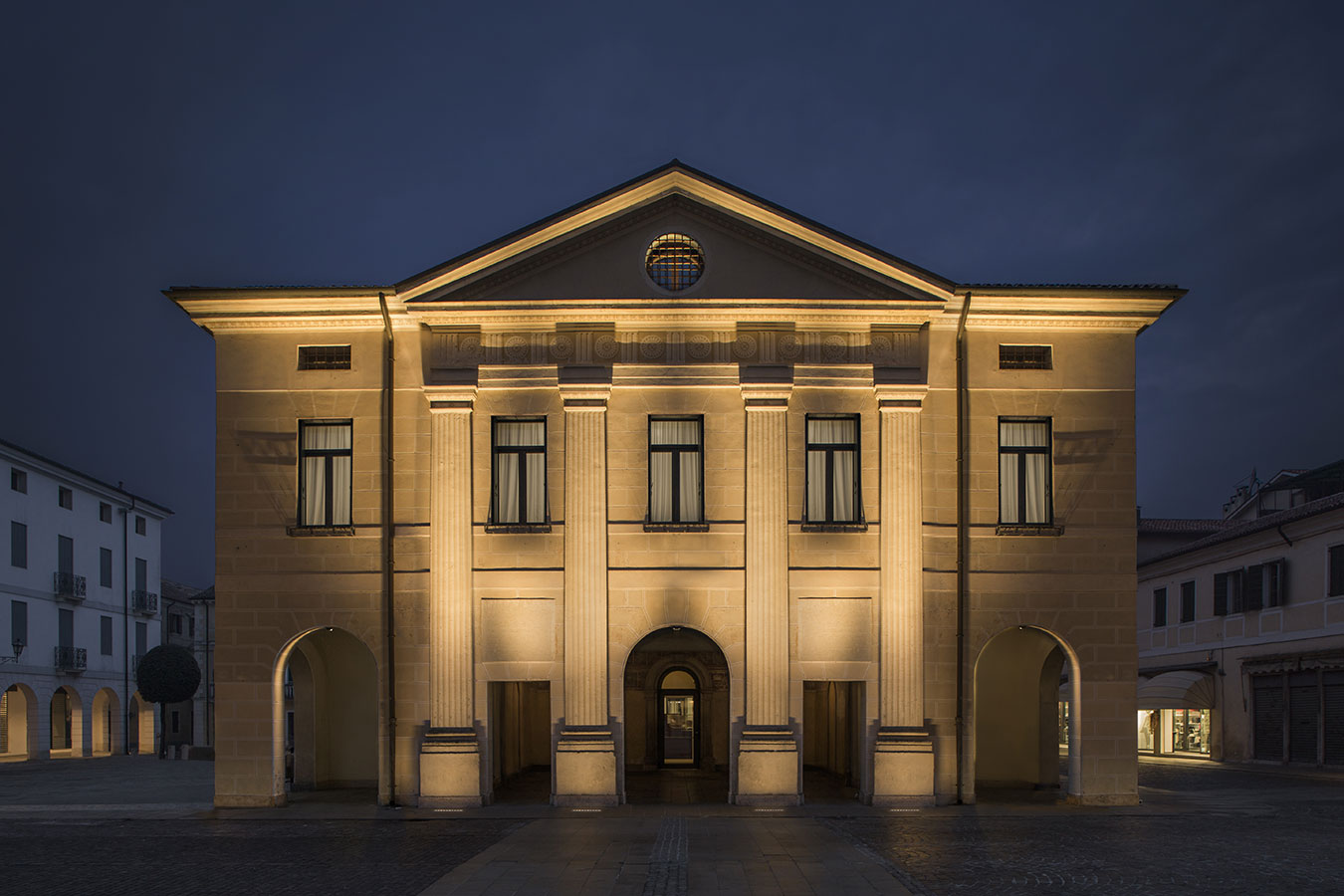

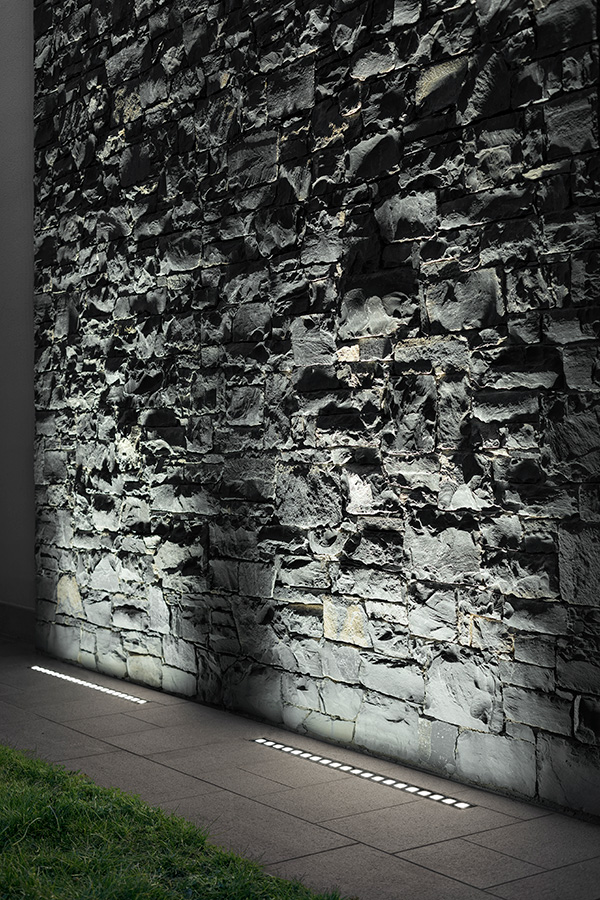

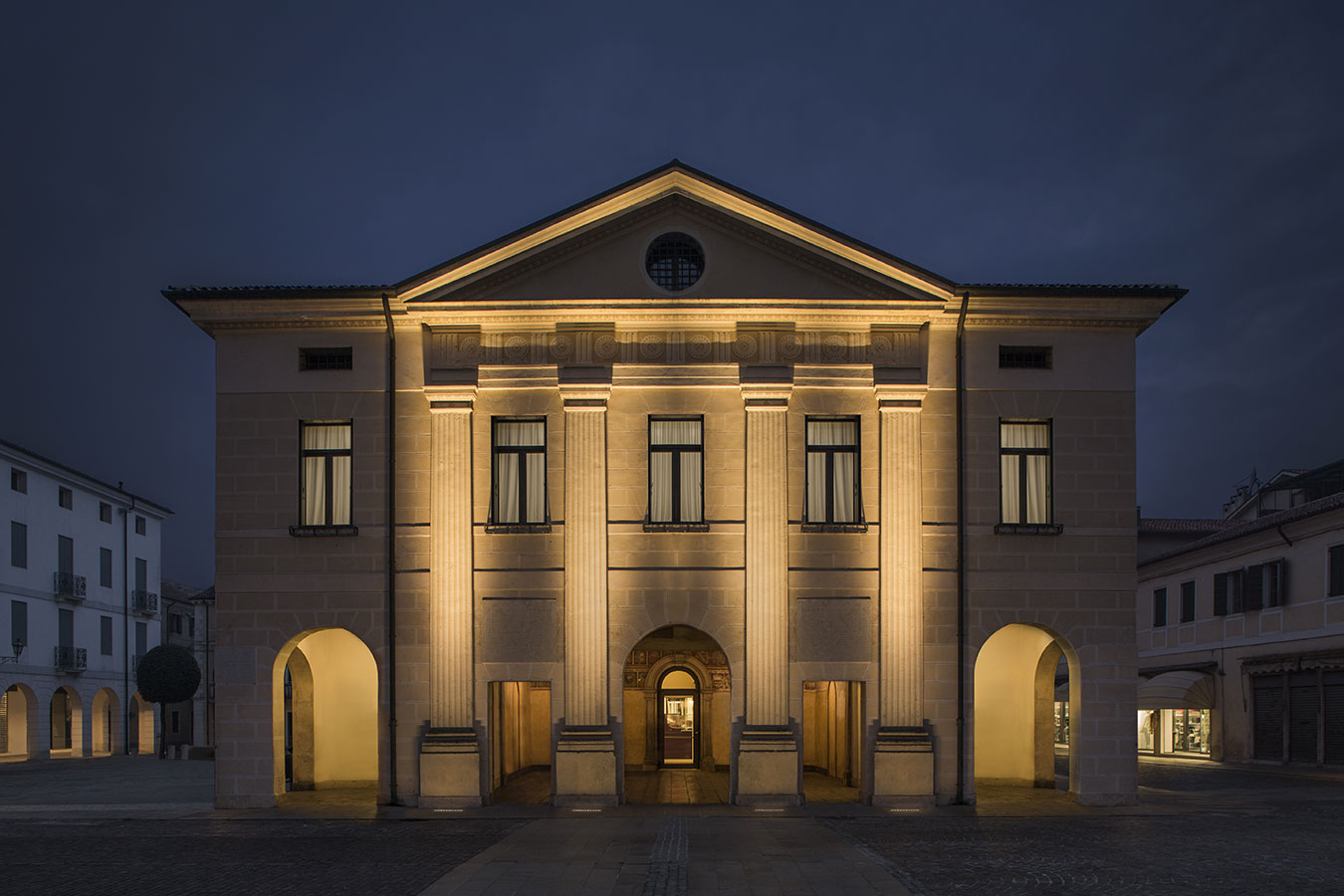

Gallery

Accessories and power supply units

Accessories (2)

Accessories for product code RV10105LV

Outer casings

WC6050

Outer casing - 503 mm

Various accessories

WN6005

Alignment kit for outer casing

Power supply units (0)

Power supply units for product code RV10105LV

No power supply units

Control gear (0)

Control gear for product code RV10105LV

No controllers

Control input (0)

No control inputs
