Ice LED 1.0

Step lights for outdoor applications

step light for outdoor applications - max 1W max 350mA - 40x40 mm

Technical data

Print technical data

on request
kg 500 - kN 5
kg 0,24
IP67
IK07

Installation	step light for outdoor applications
Power consumption	max 1W
Power supply	max 350mA
Lumen output at source	110 lm (3000K, 350mA)
Delivered lumen output	89 lm (3000K, 350mA)
Datasheet	Ice LED 1.0 step light for outdoor applications; drive-over up to 500 kg; recessed (wall, floor), surface mounted (floor); Power consumption: max 1W; Power supply: max 350mA; Lumen output at source: 110 lm (3000K, 350mA); Delivered lumen output: 89 lm (3000K, 350mA); 1 power LED, 1/4 ANSI BIN (white LED colour), 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K, 5000K, blue; Optics: diffuse; CRI Colour Rendering Index: 80; Body material: body in anodized aluminium and sandblasted glass; power supply unit not included; Wiring: series; includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm; Ingress protection: IP67; Impact resistance: IK07; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; Operating temperature: -20°C — +45°C; Maximum device temperature: 40°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class III; Weight: 240 g; Dimensions: 40x40x51 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WC0410 Outer casing; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionIce LED 1.0 step light for outdoor applications drive-over up to 500 kg recessed (wall, floor), surface mounted (floor) Power consumption: max 1W Power supply: max 350mA Lumen output at source: 110 lm (3000K, 350mA) Delivered lumen output: 89 lm (3000K, 350mA) 1 power LED, 1/4 ANSI BIN (white LED colour), 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K, 5000K, blue Optics: diffuse CRI Colour Rendering Index: 80 Body material: body in anodized aluminium and sandblasted glass power supply unit not included Wiring: series includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm Ingress protection: IP67 Impact resistance: IK07 Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit Operating temperature: -20°C — +45°C Maximum device temperature: 40°C (Ta 25°C) Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class III Weight: 240 g Dimensions: 40x40x51 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WC0410 Outer casing tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (wall, floor), surface mounted (floor)
Number and type of LED	1 power LED, 1/4 ANSI BIN (white LED colour), 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K, 5000K, blue
Optics	diffuse
CRI Colour Rendering Index	80
Body material	body in anodized aluminium and sandblasted glass
Power supply unit	power supply unit not included
Wiring	series
Power cables	includes 1,5 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm
Ingress protection	IP67
Impact resistance	IK07
Status	Available

Read more

Close

Download

See all downloads

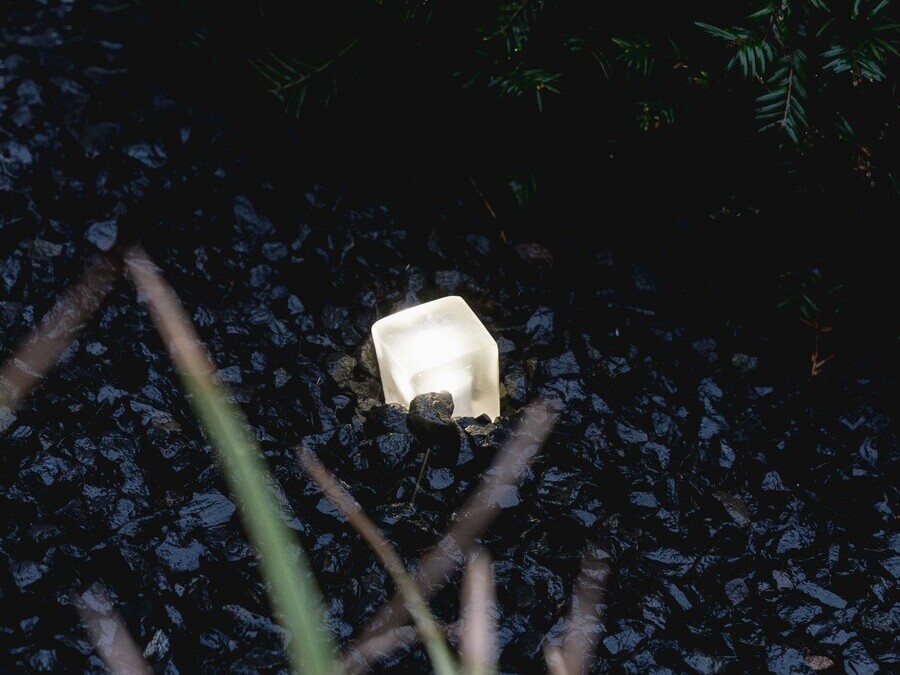

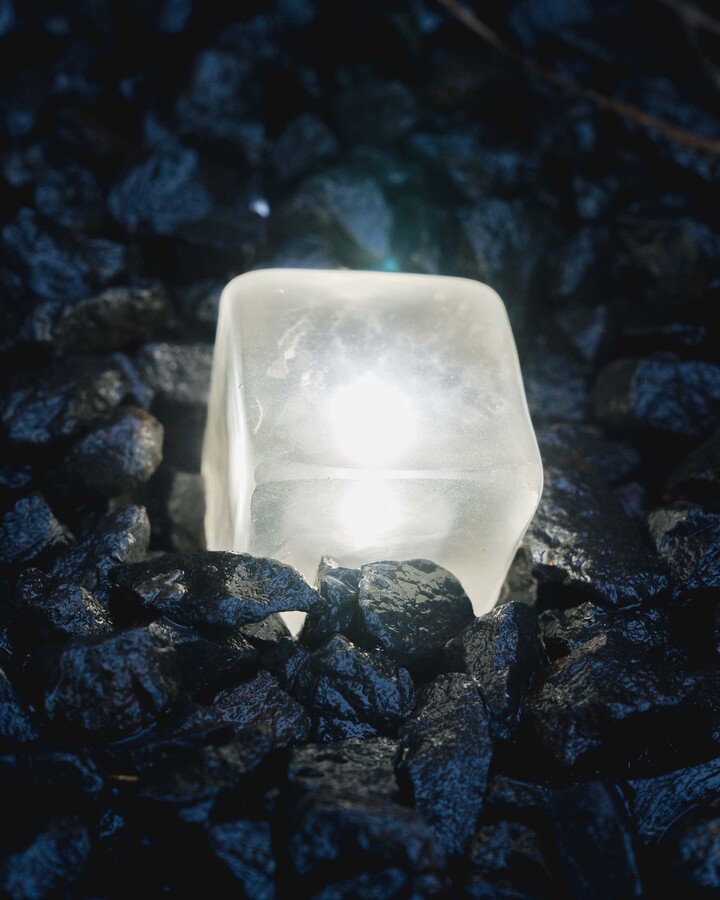

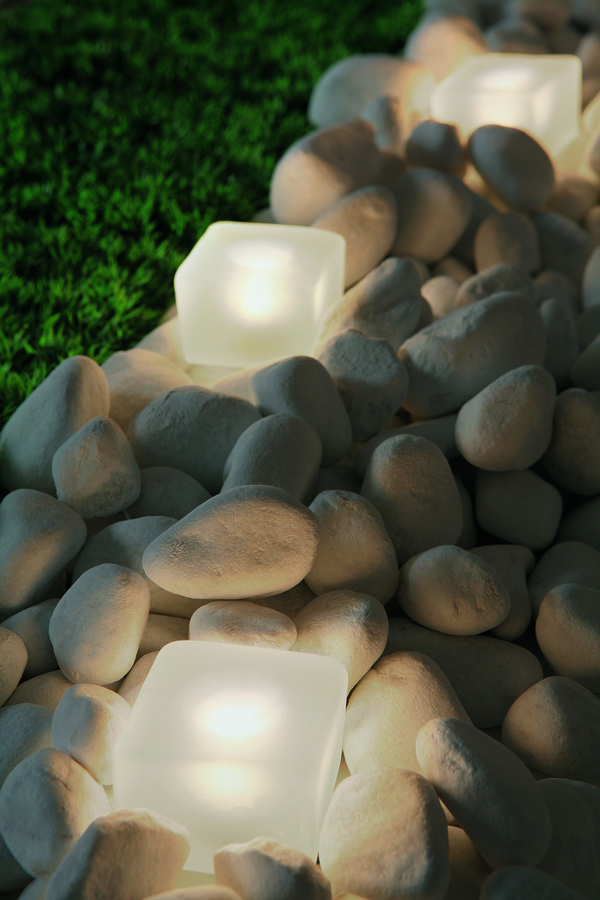

Gallery

Accessories and power supply units

Accessories (1)

Outer casings

WC0410

Outer casing

Cables

Choose the power cable in the code generator

Power supply units (17)

A13350VL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 4W
Power	4W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

A16350IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 11W
Dimmering	Cannot be dimmed
Power supply unit IP	IP67

A19220TC

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	100mA constant current; max 4,1W 120mA constant current; max 5W 140mA constant current; max 5,8W 160mA constant current; max 6,6W 180mA constant current; max 7,4W 200mA constant current; max 8,3W 220mA constant current; max 9,1W 240mA constant current; max 10W 260mA constant current; max 10,8W 280mA constant current; max 11,6W 300mA constant current; max 12,4W 320mA constant current; max 13,2W 340mA constant current; max 14,1W 360mA constant current; max 15W 60mA constant current; max 2,5W 80mA constant current; max 3,3W
Dimmering	ON/OFF
Power supply unit IP	IP20

A19350QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 15W
Dimmering	ON/OFF
Power supply unit IP	IP20

A312350IP67

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 17W
Dimmering	ON/OFF
Power supply unit IP	IP67

A312350QL

ON/OFF constant-current PSU

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	350mA constant current; max 17W
Dimmering	ON/OFF
Power supply unit IP	IP20

ACUNI020T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	24Vdc; 16W 250mA constant current; max 13W 350mA constant current; max 19W 400mA constant current; max 20W 450mA constant current; max 20W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI039T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	1050mA constant current; max 39W 350mA constant current; max 15W 500mA constant current; max 21W 550mA constant current; max 23W 650mA constant current; max 27W 700mA constant current; max 29W 750mA constant current; max 31W 850mA constant current; max 35W 900mA constant current; max 37W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNI042T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	1000mA constant current; max 42W 1050mA constant current; max 42W 300mA constant current; max 13W 350mA constant current; max 15W 400mA constant current; max 18W 450mA constant current; max 20W 500mA constant current; max 22W 550mA constant current; max 24W 600mA constant current; max 27W 650mA constant current; max 29W 700mA constant current; max 31W 750mA constant current; max 32W 800mA constant current; max 33W 850mA constant current; max 35W 900mA constant current; max 38W 950mA constant current; max 40W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

ACUNIC30T1

ON/OFF constant-current PSU

Input	230Vac 50-60 Hz
Output	250mA constant current; max 13W 280mA constant current; max 15W 310mA constant current; max 16,5W 340mA constant current; max 18W 370mA constant current; max 19,5W 400mA constant current; max 21W 430mA constant current; max 22,5W 460mA constant current; max 24W 490mA constant current; max 26W 520mA constant current; max 27,5W 550mA constant current; max 29W 580mA constant current; max 30W 610mA constant current; max 30W 640mA constant current; max 30W 670mA constant current; max 30W 700mA constant current; max 30W
Dimmering	Cannot be dimmed
Power supply unit IP	IP20

AD018350TLT1

Dimmable power supply unit with mains dimming

Input	230Vac 50-60 Hz
Output	350mA constant current; max 18W
Dimmering	Mains dimming, ON/OFF
Power supply unit IP	IP20

AD020DALIT1

DALI dimmable power supply unit

Output	24Vdc; 16W 250mA constant current; max 10W 350mA constant current; max 15W 400mA constant current; max 17W 450mA constant current; max 19W 500mA constant current; max 20W 550mA constant current; max 20W 600mA constant current; max 20W 700mA constant current; max 20W
Dimmering	DALI, ON/OFF
Power supply unit IP	IP20

AD030DALIT1AM

DALI+PUSH dimmable power supply unit

Input	230Vac 50-60 Hz
Output	250mA constant current; max 13W 280mA constant current; max 15W 310mA constant current; max 16,5W 340mA constant current; max 18W 370mA constant current; max 20W 400mA constant current; max 21W 430mA constant current; max 23W 460mA constant current; max 25W 490mA constant current; max 26W 520mA constant current; max 26W 550mA constant current; max 27W 580mA constant current; max 29W 610mA constant current; max 30W 640mA constant current; max 30W 670mA constant current; max 30W 700mA constant current; max 30W
Dimmering	PUSH, DALI, ON/OFF
Power supply unit IP	IP20

AD032TLT1

Dimmable power supply unit

Input	230Vac 50-60 Hz
Output	12Vdc; 10W 24Vdc; 20W 28Vdc; 22W 350mA constant current; max 17W 500mA constant current; max 24W 550mA constant current; max 25W 700mA constant current; max 32W 750mA constant current; max 32W
Dimmering	PUSH, Mains dimming, ON/OFF
Power supply unit IP	IP20

AD050DALIT1

DALI+PUSH+1-10V dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	1050mA constant current; max 50W 350mA constant current; max 25W 500mA constant current; max 35W 550mA constant current; max 39W 650mA constant current; max 46W 700mA constant current; max 50W 750mA constant current; max 50W 850mA constant current; max 50W 900mA constant current; max 50W
Dimmering	0/1-10V, PUSH, DALI, ON/OFF
Power supply unit IP	IP20

AD050PUSHT1

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	1050mA constant current; max 50W 350mA constant current; max 25W 500mA constant current; max 35W 550mA constant current; max 39W 650mA constant current; max 46W 700mA constant current; max 50W 750mA constant current; max 50W 850mA constant current; max 50W 900mA constant current; max 50W
Dimmering	0/1-10V, PUSH, ON/OFF
Power supply unit IP	IP20

ADUNITC

1-10V+PUSH dimmable power supply unit

Input	115-230Vac 50-60 Hz 230Vac 50-60 Hz
Output	12Vdc; 11W 24Vdc; 20W 250mA constant current; max 13W 300mA constant current; max 16W 350mA constant current; max 18W 400mA constant current; max 21W 450mA constant current; max 23W 500mA constant current; max 25W 550mA constant current; max 27W 600mA constant current; max 30W 650mA constant current; max 32W 700mA constant current; max 32W 750mA constant current; max 20W 800mA constant current; max 20W 850mA constant current; max 20W 900mA constant current; max 20W
Dimmering	0/1-10V, PUSH, ON/OFF
Power supply unit IP	IP20

Control gear (3)

ARCUNID2-01

Universal Sequencer - Low-voltage 4-channel controller with constant-current output

order in addition to PSU

Input	24Vdc 48Vdc
Output	1 channel With 24 Vdc input:; 1050mA constant current; max 20W With 24 Vdc input:; 350mA constant current; max 6,7W With 24 Vdc input:; 500mA constant current; max 9,5W With 24 Vdc input:; 700mA constant current; max 13,3W With 48 Vdc input:; 1050mA constant current; max 45W With 48 Vdc input:; 350mA constant current; max 15,5W With 48 Vdc input:; 500mA constant current; max 21,5W With 48 Vdc input:; 700mA constant current; max 30W 2 channels With 24 Vdc input:; 1050mA constant current; max 40W With 24 Vdc input:; 350mA constant current; max 13,3W With 24 Vdc input:; 500mA constant current; max 19W With 24 Vdc input:; 700mA constant current; max 26,6W With 48 Vdc input:; 1050mA constant current; max 90,3W With 48 Vdc input:; 350mA constant current; max 30W With 48 Vdc input:; 500mA constant current; max 43W With 48 Vdc input:; 700mA constant current; max 60W 3 channels With 24 Vdc input:; 1050mA constant current; max 60W With 24 Vdc input:; 350mA constant current; max 20W With 24 Vdc input:; 500mA constant current; max 28,5W With 24 Vdc input:; 700mA constant current; max 40W With 48 Vdc input:; 1050mA constant current; max 135W With 48 Vdc input:; 350mA constant current; max 45W With 48 Vdc input:; 500mA constant current; max 64,5W With 48 Vdc input:; 700mA constant current; max 90,3W 4 channels With 24 Vdc input:; 1050mA constant current; max 80W With 24 Vdc input:; 350mA constant current; max 26,6W With 24 Vdc input:; 500mA constant current; max 38W With 24 Vdc input:; 700mA constant current; max 53,2W With 48 Vdc input:; 1050mA constant current; max 180W With 48 Vdc input:; 350mA constant current; max 62W With 48 Vdc input:; 500mA constant current; max 86W With 48 Vdc input:; 700mA constant current; max 120W
Dimmering	0/1-10V, PUSH, DALI (DT6), 10kΩ potentiometer, DMX512+RDM, Stand alone
Power supply unit IP	IP20

EC0CEN12443520

Low-voltage 4-channel controller with constant-current output (350mA) for CASAMBI

White, dynamic white, RGB, RGBW, RGB+W
order in addition to PSU

Input	24Vdc 12Vdc
Output	1 channel With 12 Vdc input:; 350mA constant current; max 4,2W With 24 Vdc input:; 350mA constant current; max 8,4W 2 channels With 12 Vdc input:; 350mA constant current; max 8,4W With 24 Vdc input:; 350mA constant current; max 16,8W 3 channels With 12 Vdc input:; 350mA constant current; max 12,6W With 24 Vdc input:; 350mA constant current; max 25,2W 4 channels With 12 Vdc input:; 350mA constant current; max 16,8W With 24 Vdc input:; 350mA constant current; max 33,6W
Dimmering	PUSH, Casambi
Power supply unit IP	IP20

WFA024350

Converter with 350 mm cable

low-voltage converter to be used with a constant-voltage power supply unit

Input	24Vdc
Output	350mA constant current; max 8,4W
Dimmering	PWM
Power supply unit IP	IP20

Control input (2)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm

EC0TIM12840020

Timer for CASAMBI

Input	12-48 Vdc
Ingress protection	IP20
Dimensions	45x58x25 mm, 40g

Projects

Versions

Ice LED 1.1
max 1W

max 350mA

2700K, 3000K, 4000K, 5000K, blue
