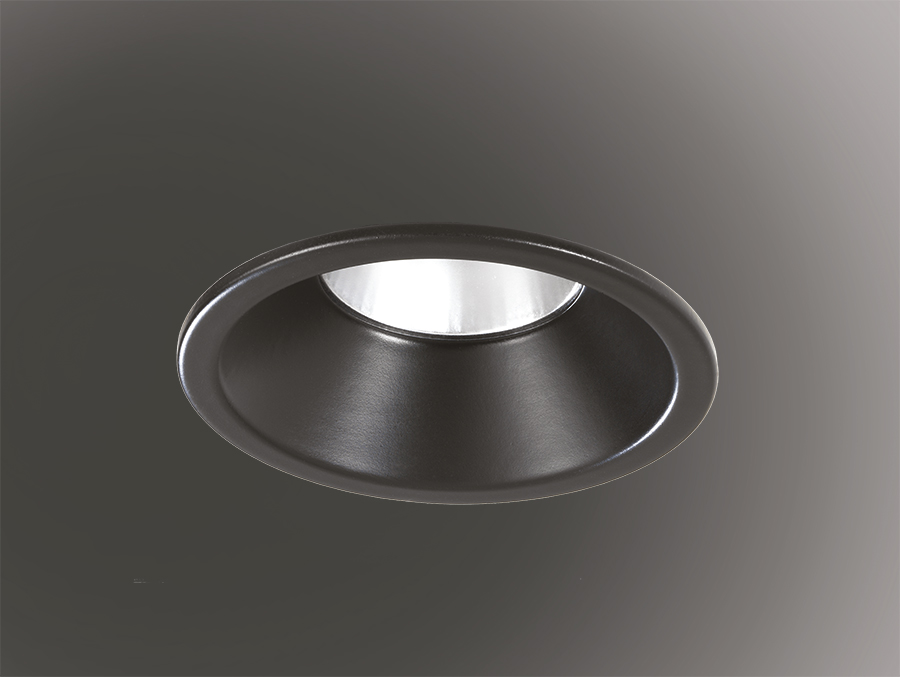

Esem 3.0

Recessed for indoor applications

recessed for indoor applications - 8W 230Vac - fixed optics - ø59 mm

Technical data

Print technical data

on request
DALI
kg 0,25
Ø50 mm
IP40
DALI
PUSH

Installation	recessed downlight for indoor applications
Power consumption	8W
Power supply	230Vac
Lumen output at source	512 lm (3000K)
Delivered lumen output	425 lm (3000K, 30°)
Datasheet	Esem 3.0 recessed downlight for indoor applications; recessed (ceiling); Power consumption: 8W; Power supply: 230Vac; Lumen output at source: 512 lm (3000K); Delivered lumen output: 425 lm (3000K, 30°); 1 multichip power LED, 2-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 20°, 30°, 54°; CRI Colour Rendering Index: >80; Body material: body and trim in aluminium; Finishes: white (RAL 9003), black (RAL 9005); RAL finish on request; Thickness of installation surface: min 5 mm, max 25 mm; power supply unit included; includes 0,30 m cable; Control system: PUSH, DALI, ON/OFF; Ingress protection: IP40; Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: 0°C — +45°C; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I (DALI), class II; Weight: 250 g; Dimensions: Ø59x87 mm; Cutout dimensions: Ø50 mm; Volume of thermal heatsink: Ø170x150 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionEsem 3.0 recessed downlight for indoor applications recessed (ceiling) Power consumption: 8W Power supply: 230Vac Lumen output at source: 512 lm (3000K) Delivered lumen output: 425 lm (3000K, 30°) 1 multichip power LED, 2-step MacAdam, 50 000h L90 B10 (Ta 25°C) LED colour: 2700K, 3000K, 4000K Optics: 20°, 30°, 54° CRI Colour Rendering Index: >80 Body material: body and trim in aluminium Finishes: white (RAL 9003), black (RAL 9005) RAL finish on request Thickness of installation surface: min 5 mm, max 25 mm power supply unit included includes 0,30 m cable Control system: PUSH, DALI, ON/OFF Ingress protection: IP40 Casambi-compatible version, controllable with the Casambi app, available on request Operating temperature: 0°C — +45°C Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I (DALI), class II Weight: 250 g Dimensions: Ø59x87 mm Cutout dimensions: Ø50 mm Volume of thermal heatsink: Ø170x150 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	recessed (ceiling)
Number and type of LED	1 multichip power LED, 2-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour	2700K, 3000K, 4000K
Optics	20°, 30°, 54°
CRI Colour Rendering Index	>80
Body material	body and trim in aluminium
Finishes	white, black
Power supply unit	power supply unit included
Power cables	includes 0,30 m cable
Control system	PUSH, DALI, ON/OFF
Ingress protection	IP40
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

Gallery

Accessories and power supply units

Accessories (0)

No accessories

Power supply units (0)

No power supply units

Control gear (0)

No controllers

Control input (1)

AE01350T1

Emergency module integrated

Input	220─240Vac 50─60Hz
Output	max 350mA 58Vdc max
Ingress protection	IP20
Dimensions	35x47x166 mm, 185 g
Cutout dimensions	Ø58 mm
