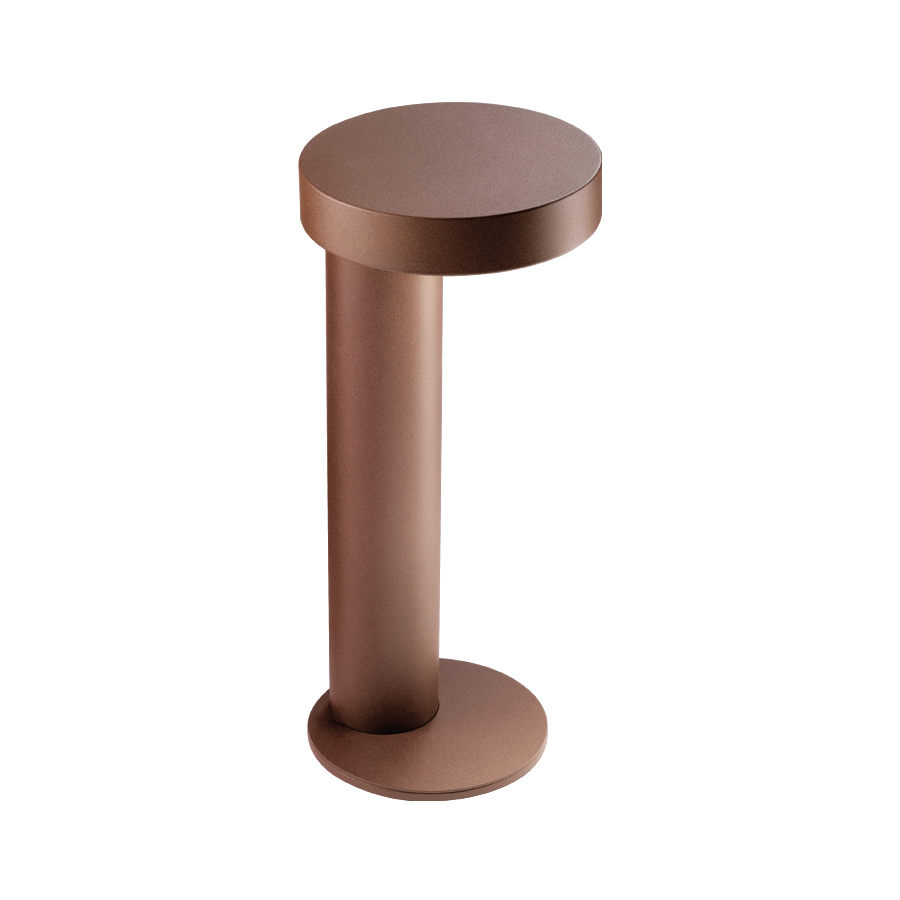

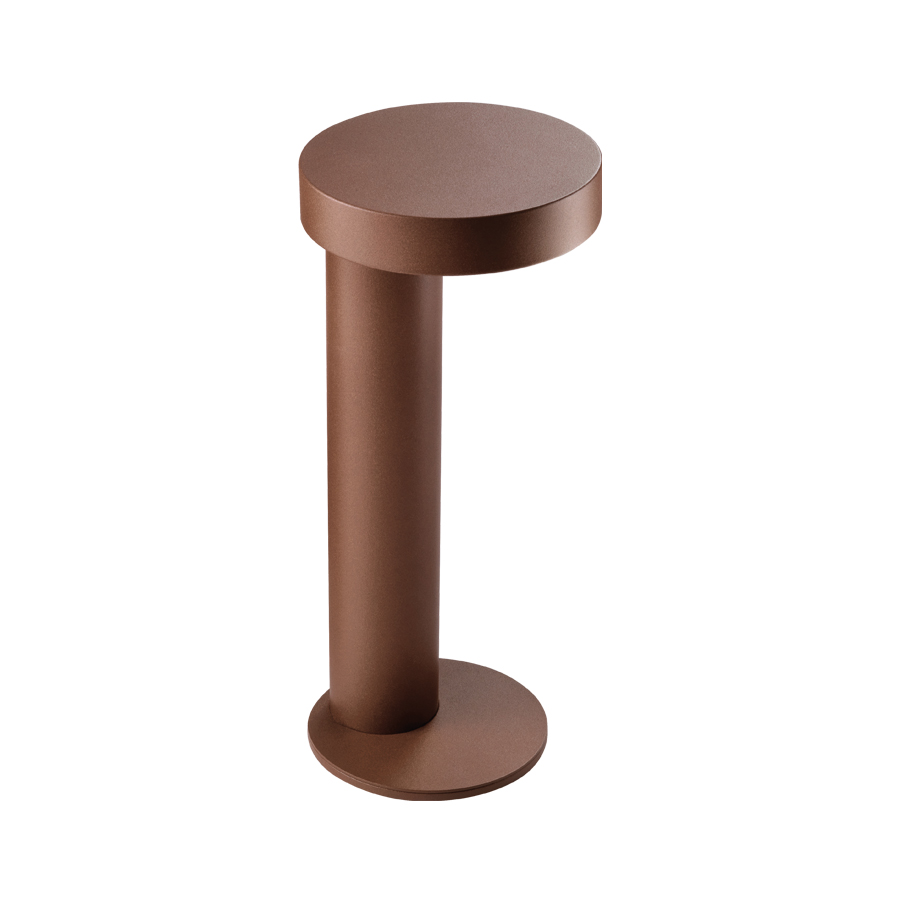

Plin 5.0

Bollards for outdoor applications

bollard for outdoor applications - 8W 230Vac - asymmetrical optics - h 285 mm

Generate code

Customize this product

This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.

Possible customizations:

Constant-current or constant-voltage power supply for remote DALI control

Technical data

Print technical data

Updated to PN501005AT

kg 1,80
IP65
IK07

Installation	bollard for outdoor applications
Power consumption	8W
Power supply	230Vac
Lumen output at source	488 lm (3000K)
Delivered lumen output	173 lm (3000K)
Datasheet	Plin 5.0 code: PN501005AT bollard for outdoor applications; surface mounted (floor); Power consumption: 8W; Power supply: 230Vac; Lumen output at source: 488 lm (3000K); Delivered lumen output: 173 lm (3000K); 1 power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 3000K; Optics: asymmetrical: optical system consisting of a quarter-ball lens combined with a high-quality technical filter and protected by serigraphed, tempered extra-clear glass. Positioned inside the head perpendicular to the body, this system ensures the side and front areas are correctly lit. The product features a cut-off, eliminating light behind it; Upward flux fraction: 0,02%; CRI Colour Rendering Index: 80; Body material: head made of ANTICORODAL 6082 aluminium alloy, made entirely on a CNC lathe. Body and base trim piece laser cut from AISI 316L stainless steel; Finishes: cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector; RAL finish on request; Screen material: screen in serigraphed, transparent and tempered extra-clear glass; Installation: with a plate to put on the base to cover the screws; built-in power supply unit; Ingress protection: IP65; Impact resistance: IK07; non-standard heights available on request, Casambi-compatible version, controllable with the Casambi app, available on request; with watertight connector for cables up to Ø12 mm; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 1800 g; Dimensions: Ø125x285 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WPA00 Spike for in-ground installation; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionPlin 5.0 code: PN501005AT bollard for outdoor applications surface mounted (floor) Power consumption: 8W Power supply: 230Vac Lumen output at source: 488 lm (3000K) Delivered lumen output: 173 lm (3000K) 1 power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C) LED colour: 3000K Optics: asymmetrical: optical system consisting of a quarter-ball lens combined with a high-quality technical filter and protected by serigraphed, tempered extra-clear glass. Positioned inside the head perpendicular to the body, this system ensures the side and front areas are correctly lit. The product features a cut-off, eliminating light behind it Upward flux fraction: 0,02% CRI Colour Rendering Index: 80 Body material: head made of ANTICORODAL 6082 aluminium alloy, made entirely on a CNC lathe. Body and base trim piece laser cut from AISI 316L stainless steel Finishes: cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1500 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector RAL finish on request Screen material: screen in serigraphed, transparent and tempered extra-clear glass Installation: with a plate to put on the base to cover the screws built-in power supply unit Ingress protection: IP65 Impact resistance: IK07 non-standard heights available on request, Casambi-compatible version, controllable with the Casambi app, available on request; with watertight connector for cables up to Ø12 mm Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 1800 g Dimensions: Ø125x285 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WPA00 Spike for in-ground installation tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (floor)
Number and type of LED	1 power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)
LED colour	3000K
Optics	asymmetrical
CRI Colour Rendering Index	80
Body material	head in aluminium, column in AISI 316L stainless steel
Screen material	screen in serigraphed, transparent, tempered extra-clear glass
Finishes	cor-ten
Power supply unit	built-in power supply unit
Ingress protection	IP65
Impact resistance	IK07
Notes	non-standard heights available on request, Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

JPG Images
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT Type
- Generic, for the product Plin 5.0
- Specific, for code PN501005AT
DXF Technical drawing
LDT Photometric file Type
- Generic, for the product Plin 5.0
- Specific, for code PN501005AT
IES Photometric file Type
- Generic, for the product Plin 5.0
- Specific, for code PN501005AT
CB marking
EU declaration of conformity

Accessories and power supply units

Accessories (1)

Accessories for product code PN501005AT

Spikes and arms

WPA00

Spike for in-ground installation

Power supply units (0)

Power supply units for product code PN501005AT

No power supply units

Control gear (0)

Control gear for product code PN501005AT

No controllers
