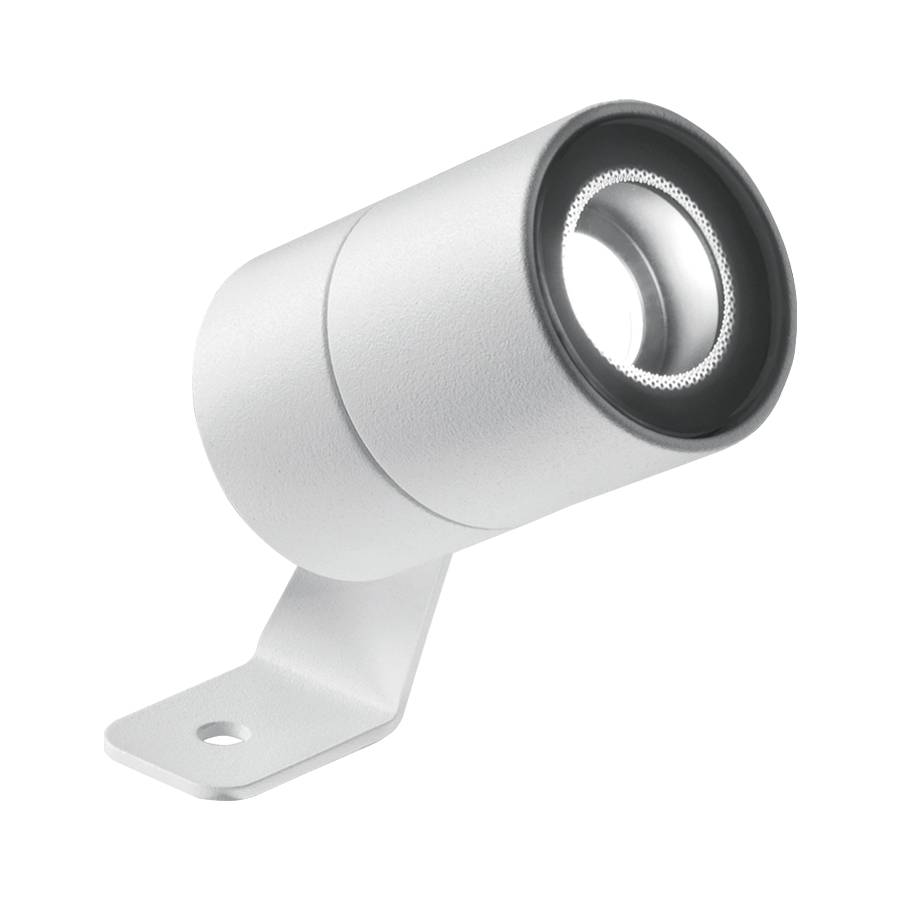

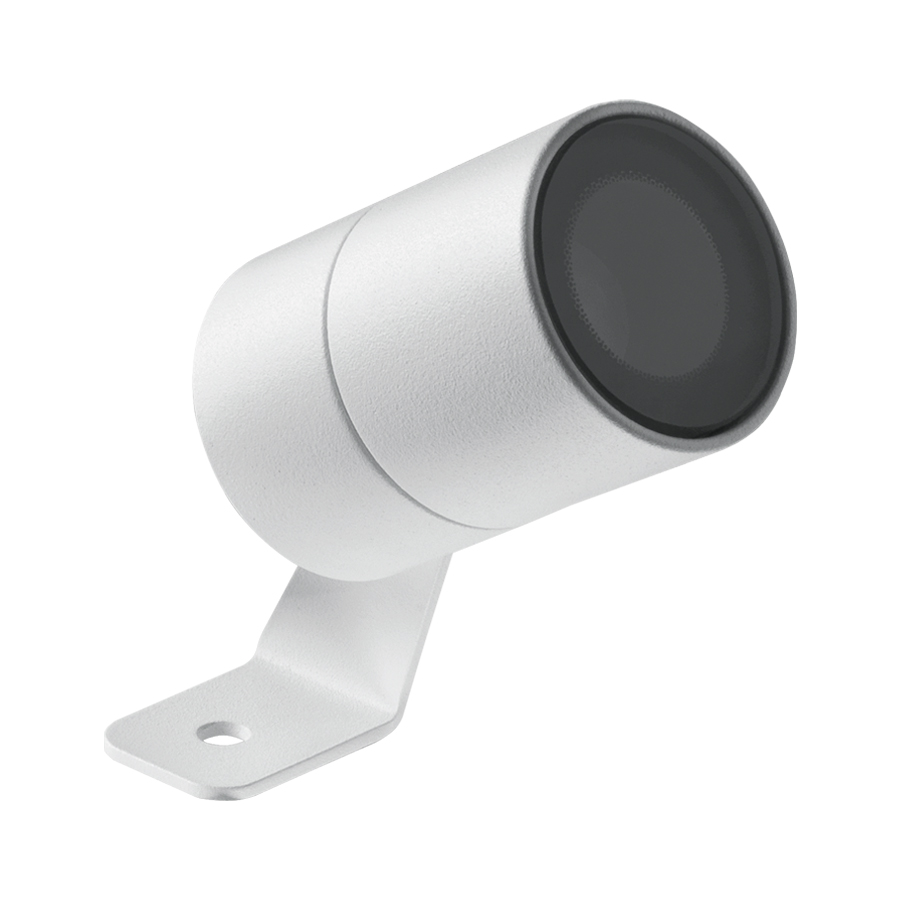

Ginko 1.0
Projectors for outdoor applications
projector for outdoor applications - 2.5W / 3.5W 24Vdc - Ø34x49 mm
Projectors for outdoor applications
projector for outdoor applications - 2.5W / 3.5W 24Vdc - Ø34x49 mm
This product can be customized, thanks to our flexible in-house production. We suggest some of the possible customized versions on the right, but if you have any different requirements, we can review them together.
Updated to GN100115ME
Installation | projector for outdoor applications |
---|---|
Power consumption | 3,5W |
Power supply | 24Vdc |
Lumen output at source | 196 lm (3000K, 3.5W, CRI >90) |
Delivered lumen output | 164 lm (3000K, 3.5W, 19°, CRI >90) |
Datasheet | Copied |
Mounting | surface mounted (ceiling, wall, ground, spike) |
---|---|
Number and type of LED | 1 power LED, 1/4 ANSI BIN, 50 000h L90 B10 (Ta 25°C) |
LED colour | 3000K |
Optics | 36° |
CRI Colour Rendering Index | >90 |
Body material | body in anticorodal aluminium, AISI 316L stainless steel bracket |
Screen material | screen in serigraphed-grey and transparent, tempered extra-clear glass |
Finishes | white |
Power supply unit | power supply unit not included |
Power cables | includes 1.5 m neoprene cable H05RN-F 2x0.75/0.75 Ø6.3 mm |
Ingress protection | IP66, IP69 |
Impact resistance | IK07 |
Status | Available |
Accessories for product code GN100115ME
![]() WP0100Spike for in-ground installation |
Order together with the lighting fixture![]() WH8001Honeycomb louvrebuilt into the lighting fixture The honeycomb louvre can be fitted on all optics, except for sharp optics |
![]() WB8011EStandard snoot - white |
![]() WB8011NStandard snoot - black anodized |
![]() WB8021EAsymmetrical snoot - white |
![]() WB8021NAsymmetrical snoot - black anodized |
Order together with the lighting fixture![]() WF3302Flexible cable-protection tube - 18 cm |
![]() WP1004Fastener strap - 5 m |
Power supply units for product code GN100115ME
Control gear for product code GN100115ME
![]() ADV576DALIN1Low-voltage dimmerorder in addition to PSU
|
![]() ARVUNID2-01Universal sequencer - Low-voltage 4-channel controller with constant-voltage outputorder in addition to PSU
|
||||||||||||||||
![]() EC0CEN12445A20Low-voltage 4-channel controller with constant-voltage output for CASAMBIWhite, dynamic white, RGB, RGBW, RGB+W
|
![]() EC0CEN1244DA20Low-voltage dimmer for CASAMBIorder in addition to PSU
|
