The range of Colorado linear profiles has been extended with the new RGBW and Tunable White versions. Featuring a powerful lighting performance and excellent light mixing, these fixtures can illuminate tall building facades with coloured lighting scenes.
Colorado 5.0, RGBW, 43W, 37°
Unique selling points
• Lighting controlled using the DMX512+RDM protocol.
• 230Vac built-in power supply.

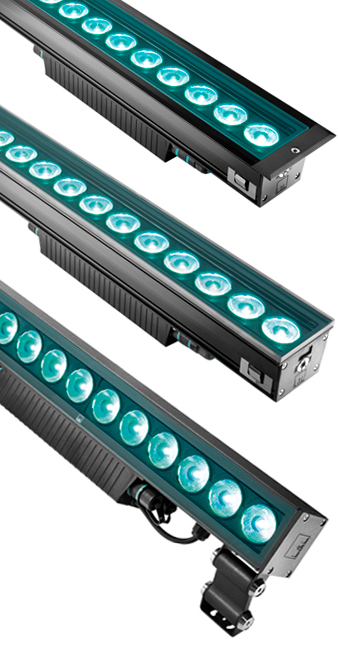

• Three lengths (approx. 60 / 90 / 120 cm) and three different configurations: recessed flush for a minimalist look, recessed with rebated frame or surface mounted using brackets with two pivot points.
• Optics include narrow 15° beam, a diffuse version, and two elliptical optics – the latter for the surface-mounted Colorado.
• Tilting system inside the optical unit. The light direction can be altered by ±20° externally with a simple adjustment on the end caps, without compromising the fixture’s IP65 and IP67 protection level.
• In/out connection and easy wiring with quick connectors designed to connect the profiles together in a line.
Technical data
Power and power supply
Colorado 4.0 / 5.0 / 6.0: 43W 230Vac
Colorado 4.1 / 5.1 / 6.1: 64W 230Vac
Colorado 4.2 / 5.2 / 6.2: 85W 230Vac
Colorado 7.0 / 8.0 / 9.0: 43W 230Vac
Colorado 7.1 / 8.1 / 9.1: 64W 230Vac
Colorado 7.2 / 8.2 / 9.2: 85W 230Vac
LED colour
Colorado 4 / 5 / 6: RGBW
Colorado 7 / 8 / 9: Tunable White: 2200K - 5000K
Optics
Colorado 4 / 5: 15°, 25°, 37°, 13°x65°, diffuse
Colorado 6: 15°, 25°, 37°, 13°x65°, 65°x13°, diffuse
Colorado 7 / 8: 16°, 26°, 36°, 16°x66°, diffuse
Colorado 9: 16°, 26°, 36°, 16°x66°, 66°x16°, diffuse
Drive-over up to 2.000 kg (Colorado 4 / 7) or 1.500 kg (Colorado 5 / 8)
Ingress protection IP65 / IP67
Impact resistance IK10 / IK09 (Colorado 6 / 9)
