Kit Combina D 1.0 / 2.0 - Recessed for outdoor applications

Combina D 1.0 and 2.0 downlights are now available in kit version, ready to be installed in shops, showrooms and offices.

The Kit Combina D is made up of:

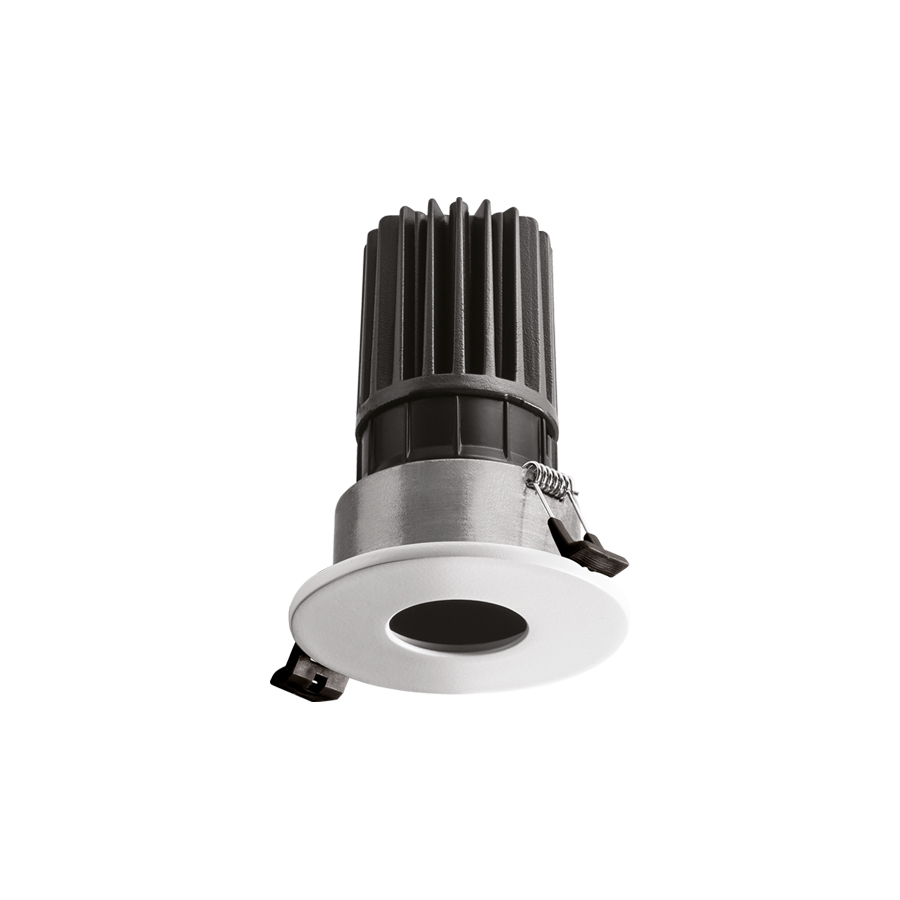

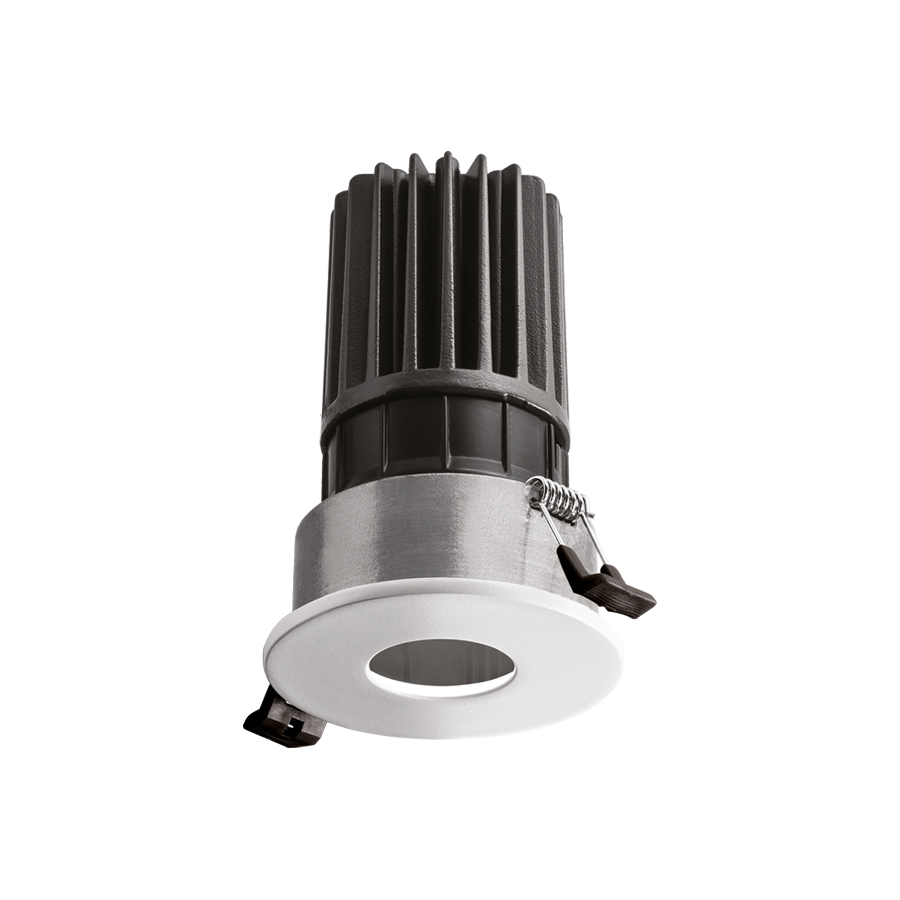

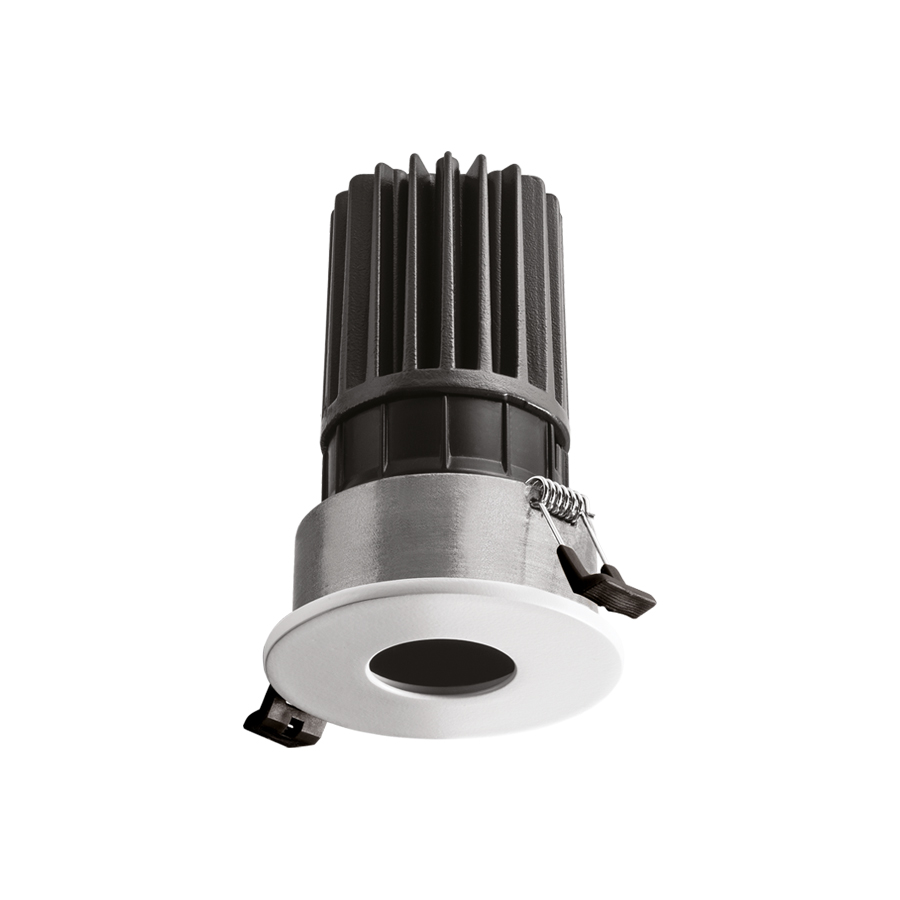

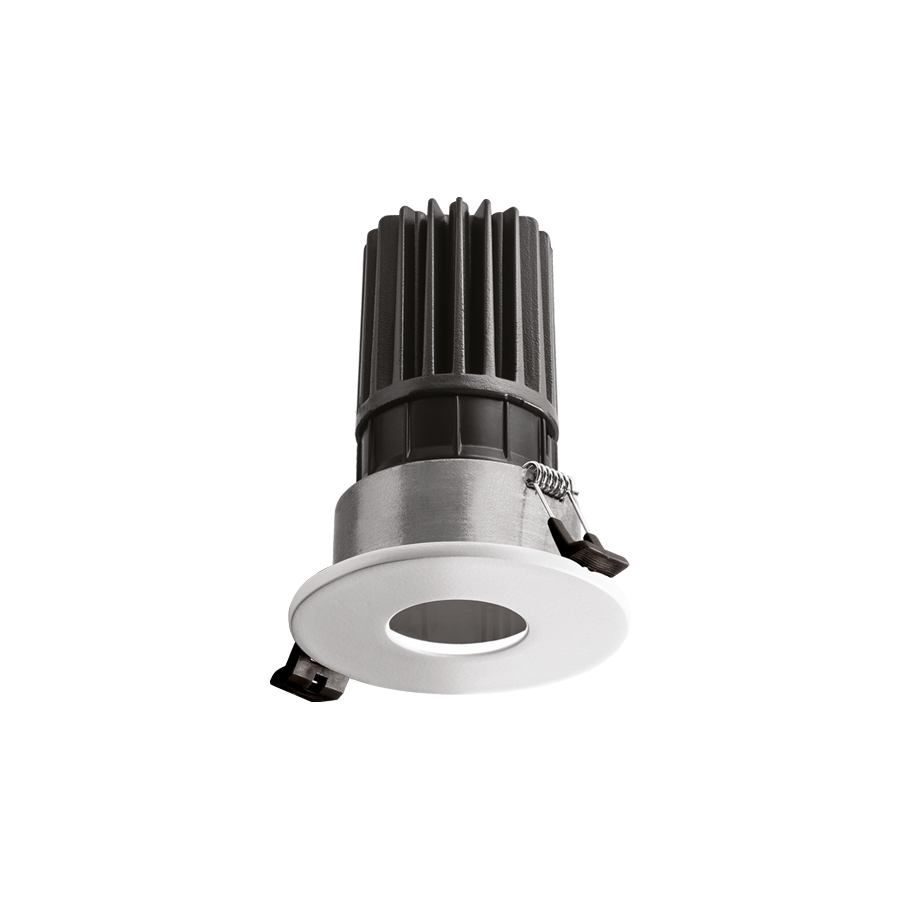

Lighting fixture with fixed body
Retaining bezel for rebated installation

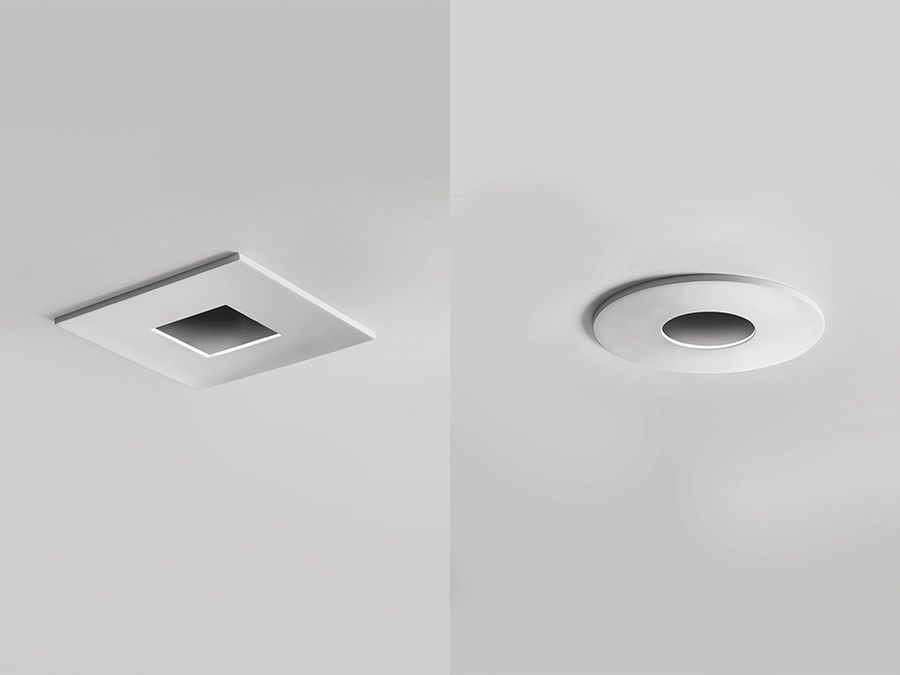

Round or square flat cover, with white finish
Power supply unit in ON/OFF current or DALI dimmable
Available wattages: 8W for the 1.0 version and 17W for the 2.0 version
The LED light sources have a high colour rendering index of CRI >90
The anti-glare recessed optics produce an output with a UGR <13, ideal for offices and work areas

Technical data

Power and power supply
Kit Combina D 1.0: 8W 230Vac
Kit Combina D 2.0: 17W 230Vac

LED colour
2700K, 3000K, 4000K

Lumen output at source
Kit Combina D 1.0: 637 lm (3000K)
Kit Combina D 2.0: 1280 lm (3000K)

Delivered lumen output

Kit Combina D 1.0: 293 lm (3000K, 16°)
Kit Combina D 2.0: 1008 lm (3000K, 36°)

Optics
Kit Combina D 1.0: 16°, 22°, 33°
Kit Combina D 2.0: 25°, 30°, 36°

Ingress protection
IP40
