14/10/2020

Eyes 2.R / 2.S / 2.T / 2.U - Recessed for indoor applications

Share

Eyes, a family of indoor recessed downlights for residential use, and an enduring favourite in the L&L catalogue, has had a makeover in terms of design and performance

  • The new-look cover has a 1-mm trim, slimmer than previous versions, so that it merges visually with the surface it is recessed into

  • The new Eyes 2 have a higher delivered lumen output thanks to the updated wattages and power supply

  • Every version has 17°, 23°, 36° and 20°x40° elliptical optics, and diffuse output, while the LED light sources also feature a high colour rendering index (CRI >90)

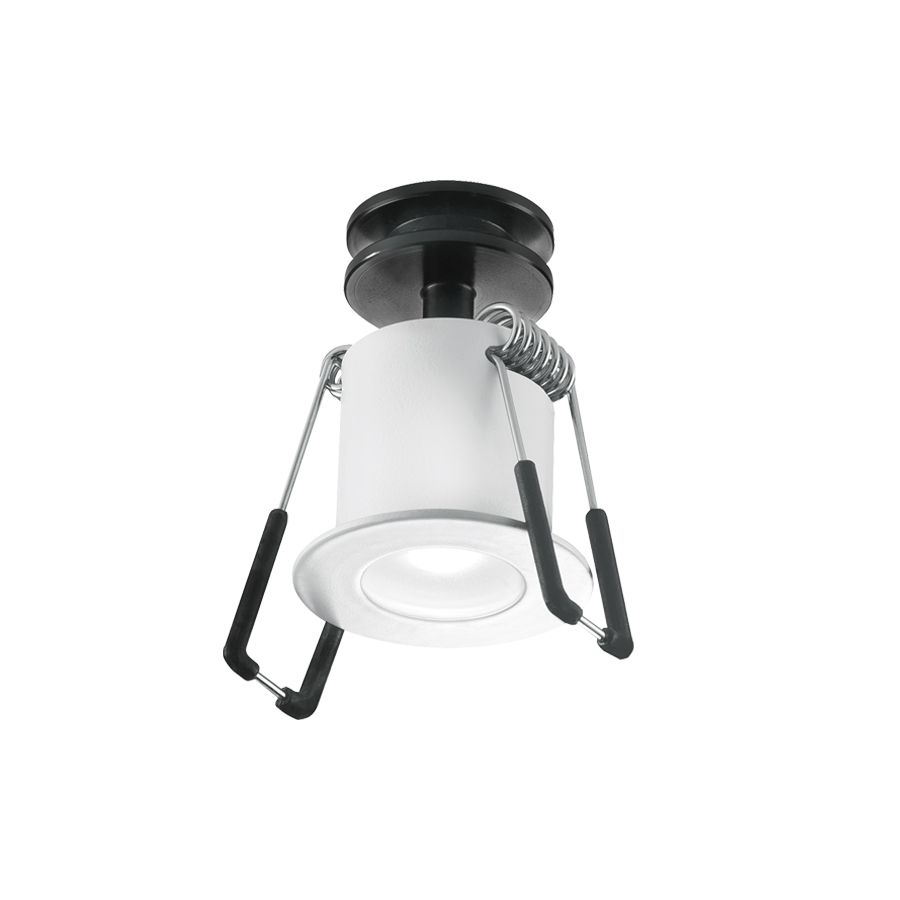

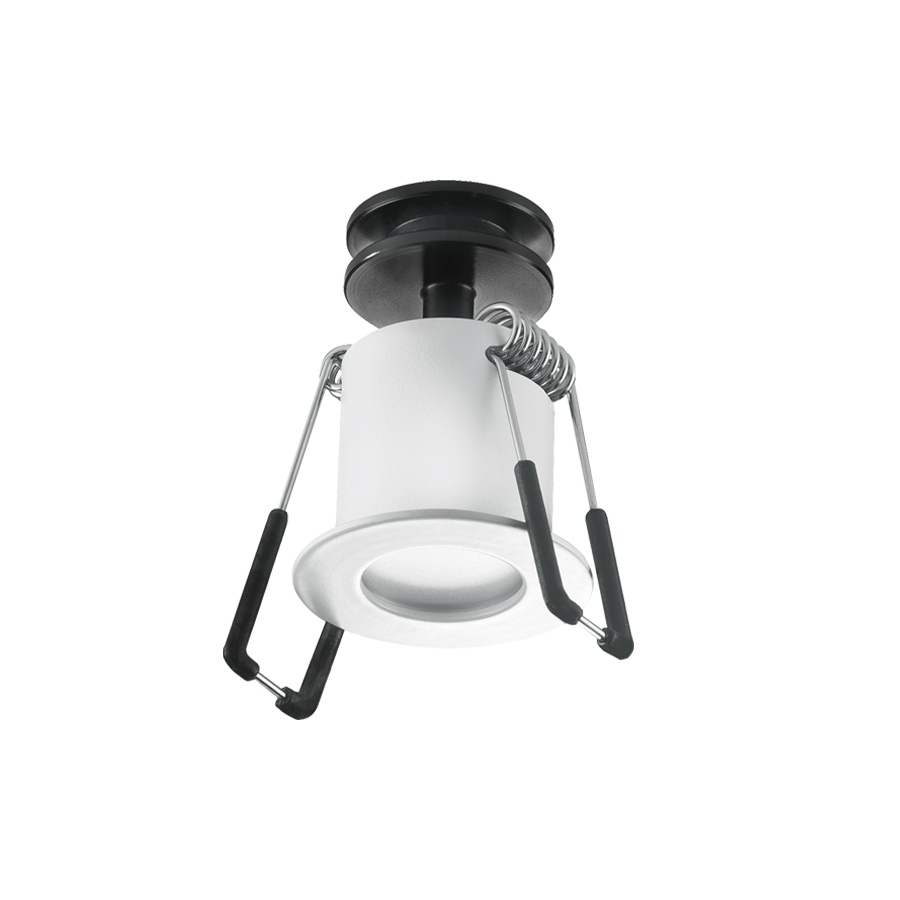

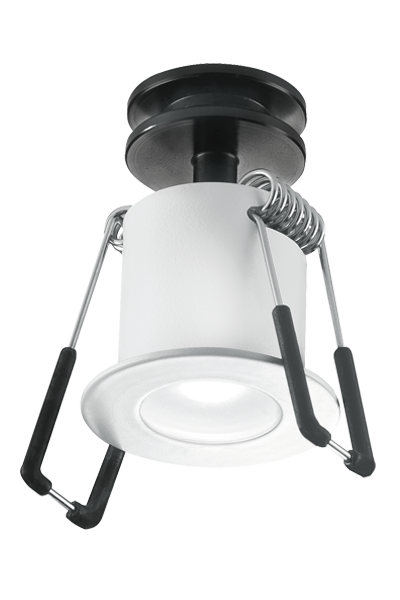

Eyes 2.R / Eyes 2.T

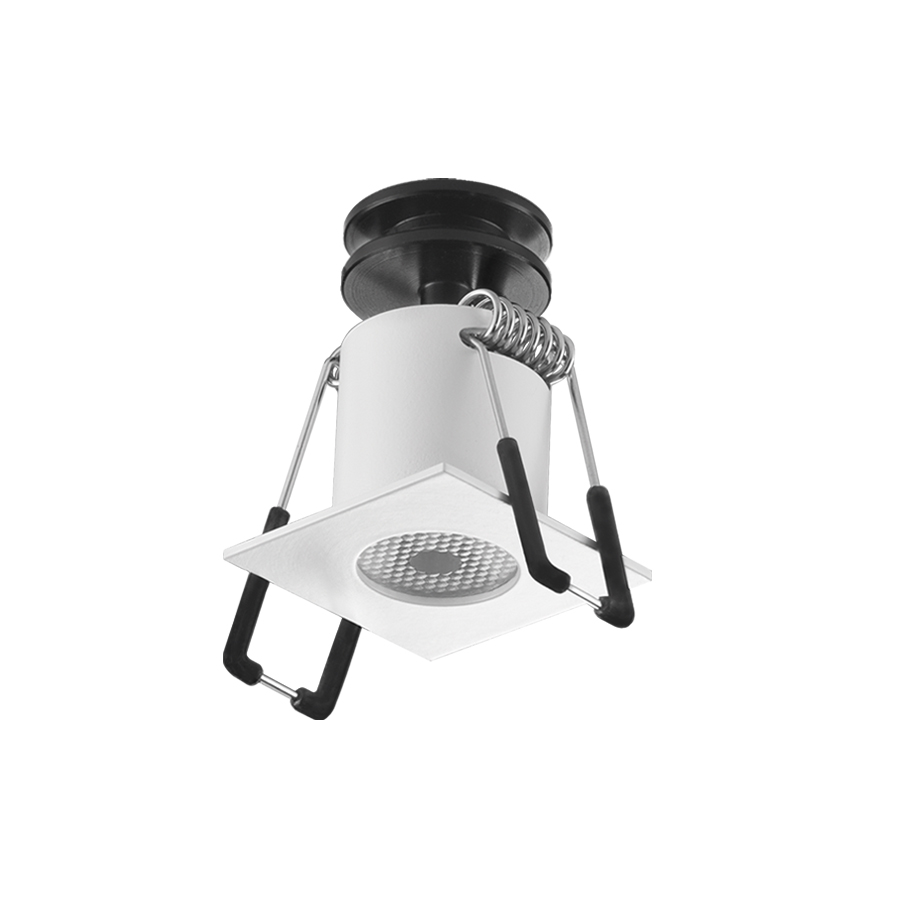

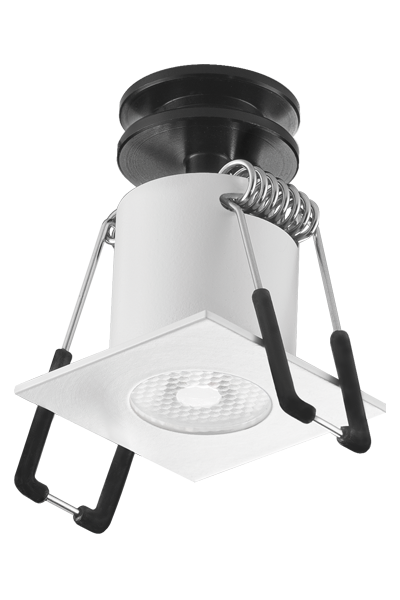

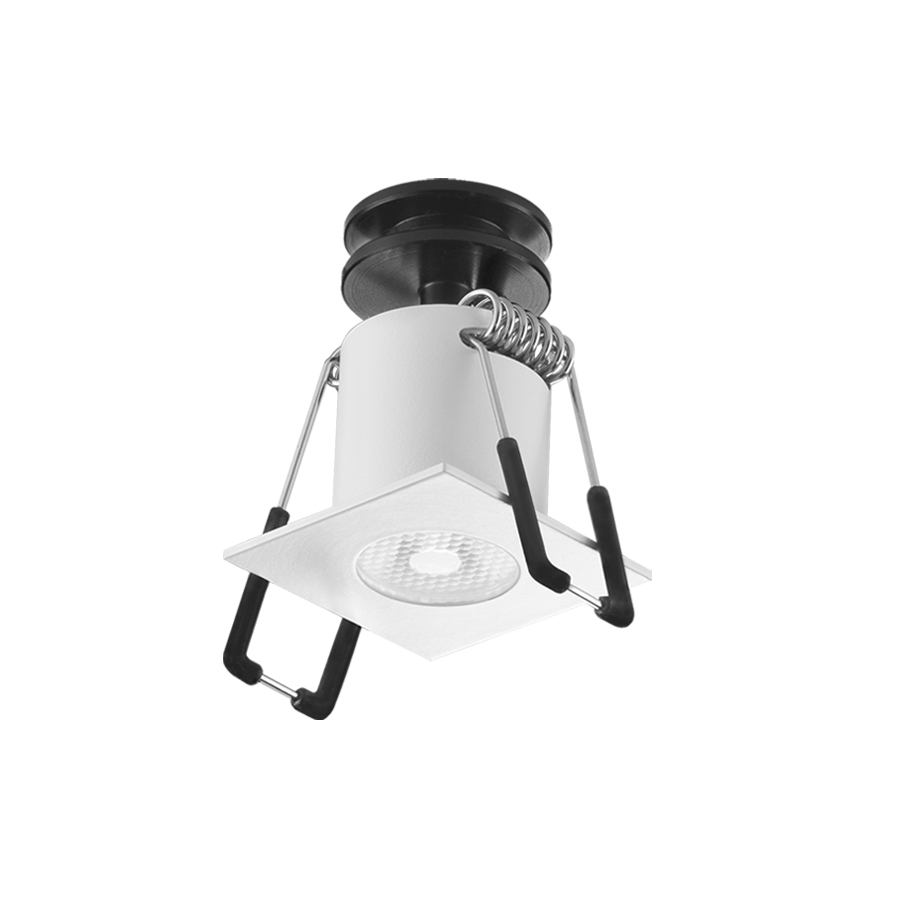

Eyes 2.S / Eyes 2.U

Technical data

Power
Eyes 2.R / 2.S: max 2,5W
Eyes 2.T / 2.U: 3W
Power supply
Eyes 2.R / 2.S: max 700mA
Eyes 2.T / 2.U: 24Vdc
LED colour
2700K, 3000K, 4000K
Lumen output at source
260 lm (3000K)
Delivered lumen output
160 lm (3000K, 23°)
Optics
17°, 23°, 36°, 20°x40°, diffuse
Ingress protection
IP40, IP44 installed

Available finishes white, black, satin

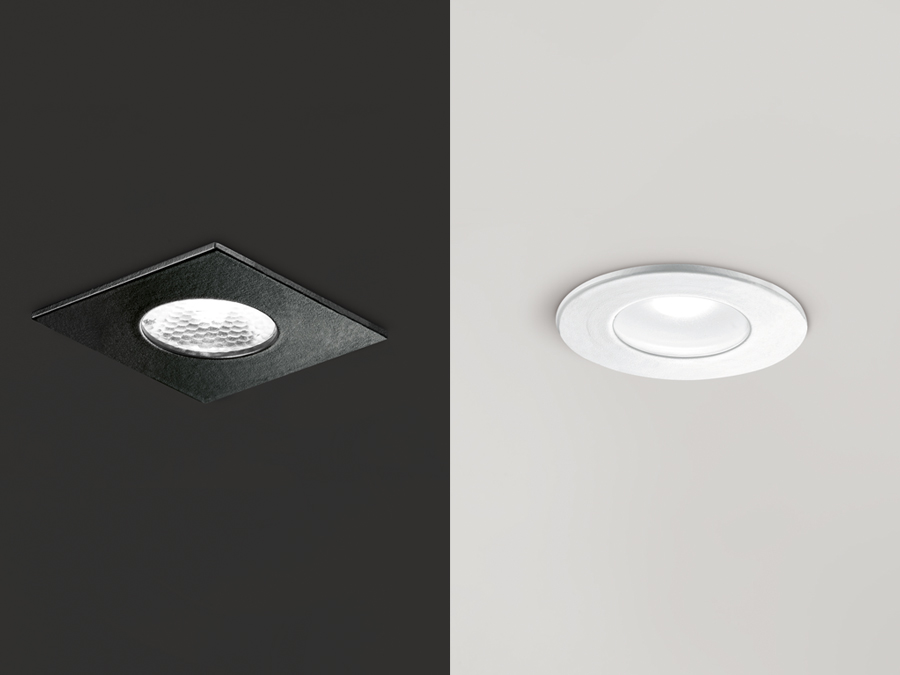

Eyes 2.S, satin

Find all the versions of Eyes here
