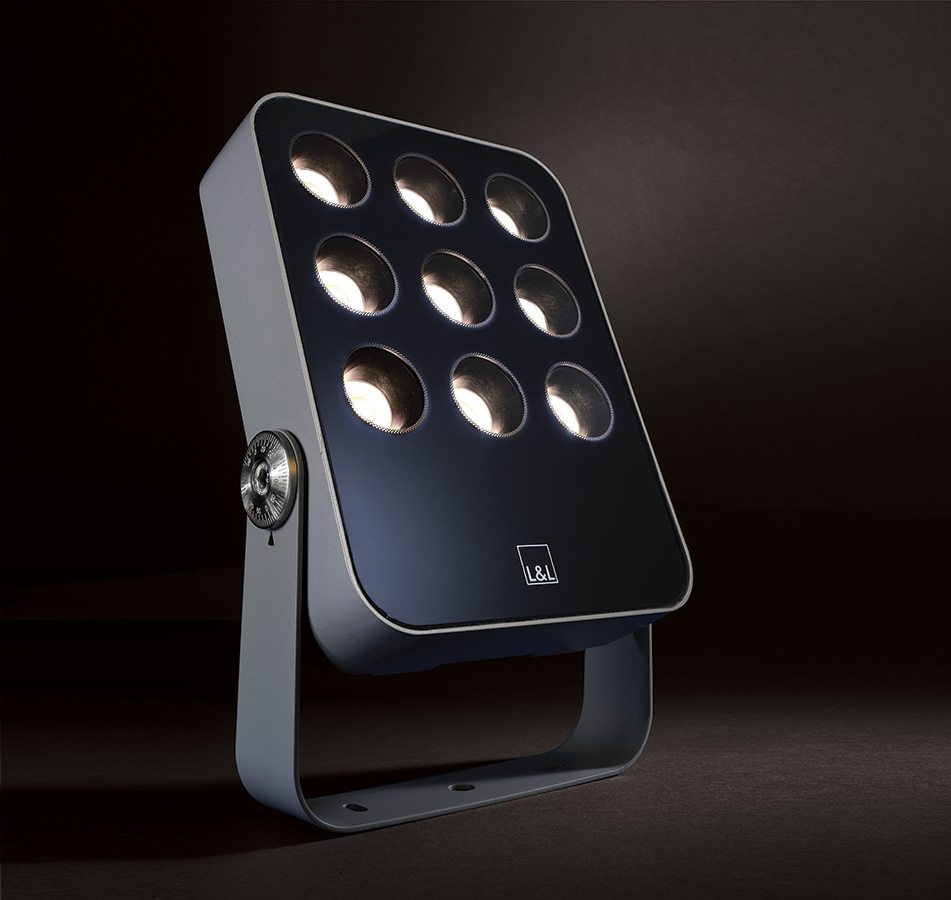

Siri 3.0

Projectors for outdoor applications

projector for outdoor applications - 23W 230Vac - adjustable 200°

Technical data

Print technical data

Updated to SR3010FMT

kg 2,24
IP66
IK06

Installation	projector for outdoor applications
Power consumption	23W
Power supply	230Vac
Lumen output at source	2214 lm (3000K)
Delivered lumen output	1491 lm (3000K, 30°)
Datasheet	Siri 3.0 code: SR3010FMT projector for outdoor applications; surface mounted (ceiling, wall, ground, spike); Power consumption: 23W; Power supply: 230Vac; Lumen output at source: 2214 lm (3000K); Delivered lumen output: 1491 lm (3000K, 30°); 9 power LEDs, 1/4 ANSI BIN, 50 000h L95 B10 (Ta 25°C); LED colour: 2700K; Optics: 30°: optical system composed of a series of light sources. The deep-set TIR lens guarantees high-quality light emission and visual comfort; CRI Colour Rendering Index: 80; Body material: body made of low-copper-content die-cast aluminium alloy EN AB 47100 for excellent resistance to corrosion; Finishes: cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector; RAL finish on request; Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches; built-in power supply unit; includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm; Control system: ON/OFF; Ingress protection: IP66; Impact resistance: IK06; Casambi-compatible version, controllable with the Casambi app, available on request; Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; This is an NTC thermistor mounted on the LED board to protect the lighting fixture against overheating. Should the product function at an operating temperature greater than the maximum temperature at which it can operate correctly, the protection is activated and gradually reduces the power. The NTC causes the integrated electronic parts to cool down to avoid the lighting fixture instantly switching itself off. When the operating temperature is again within normal range, the NTC automatically restores the lighting fixture’s original operating conditions; Operating temperature: -20°C — +45°C; Glow wire test: 960°; Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006; Appliance class: class I; Weight: 2240 g; Dimensions: 283x189x48 mm; Energy efficiency class: F (light source) in accordance with EU 2019/2015; Accessories: WB5030H Anti-glare hood - anthracite, WH5030 Honeycomb louvre , WP0300 Spike for in-ground installation; tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumptionSiri 3.0 code: SR3010FMT projector for outdoor applications surface mounted (ceiling, wall, ground, spike) Power consumption: 23W Power supply: 230Vac Lumen output at source: 2214 lm (3000K) Delivered lumen output: 1491 lm (3000K, 30°) 9 power LEDs, 1/4 ANSI BIN, 50 000h L95 B10 (Ta 25°C) LED colour: 2700K Optics: 30°: optical system composed of a series of light sources. The deep-set TIR lens guarantees high-quality light emission and visual comfort CRI Colour Rendering Index: 80 Body material: body made of low-copper-content die-cast aluminium alloy EN AB 47100 for excellent resistance to corrosion Finishes: cor-ten finish obtained through an initial treatment with a ceramic nanoparticle coating, to prepare for painting, followed by a coat of epoxy paint and one of polyester paint to provide corrosion resistance of more than 1000 hours of salt spray. Paints compliant with the Qualicoat standard used in the automotive sector RAL finish on request Screen material: 4-mm-thick transparent extra-clear glass with vitrified serigraphy, high transmittance to ensure chromatic uniformity of light and tempered for excellent resistance to knocks and scratches built-in power supply unit includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm Control system: ON/OFF Ingress protection: IP66 Impact resistance: IK06 Casambi-compatible version, controllable with the Casambi app, available on request Protection systems: IPS (Intelligent Protection System) protects lighting fixtures from water infiltrations, which can occur if there are faulty junctions between the cables in outdoor or underwater applications. This innovation, patented by L&L, also guarantees electrical protection against polarity reversal, hot plugging, ESD and power surges, which can occur if there are faults in the electrical circuit; The PID (Protective Impedance Device) protects lighting fixtures from electrical phenomena external to the system, such as static electricity accumulation or electromagnetic interference coming from the mains power. Generally, these are events with a low energy content; This is an NTC thermistor mounted on the LED board to protect the lighting fixture against overheating. Should the product function at an operating temperature greater than the maximum temperature at which it can operate correctly, the protection is activated and gradually reduces the power. The NTC causes the integrated electronic parts to cool down to avoid the lighting fixture instantly switching itself off. When the operating temperature is again within normal range, the NTC automatically restores the lighting fixture’s original operating conditions Operating temperature: -20°C — +45°C Glow wire test: 960° Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006 Appliance class: class I Weight: 2240 g Dimensions: 283x189x48 mm Energy efficiency class: F (light source) in accordance with EU 2019/2015 Accessories: WB5030H Anti-glare hood - anthracite, WH5030 Honeycomb louvre , WP0300 Spike for in-ground installation tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption Copied

Mounting	surface mounted (ceiling, wall, ground, spike)
Number and type of LED	9 power LEDs, 1/4 ANSI BIN, 50 000h L95 B10 (Ta 25°C)
LED colour	2700K

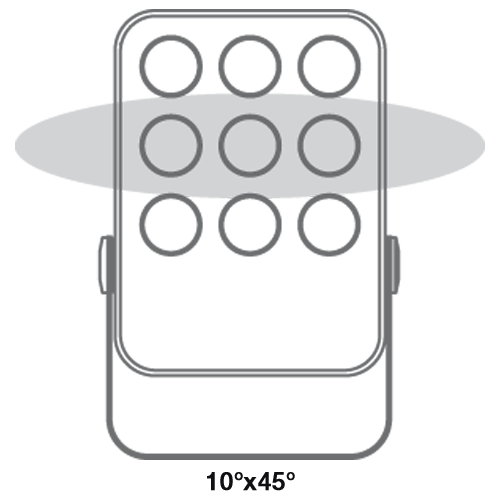

Optics	30°
CRI Colour Rendering Index	80
Body material	body in die-cast aluminium
Screen material	screen in serigraphed, transparent, tempered extra-clear glass
Finishes	cor-ten
Power supply unit	built-in power supply unit
Power cables	includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm
Control system	ON/OFF
Ingress protection	IP66
Impact resistance	IK06
Notes	Casambi-compatible version, controllable with the Casambi app, available on request
Status	Available

Read more

Close

Download

See all downloads

JPG Images
PDF Catalogue
PDF Technical sheet
PDF Instruction sheet
Datasheet TXT Type
- Generic, for the product Siri 3.0
- Specific, for code SR3010FMT

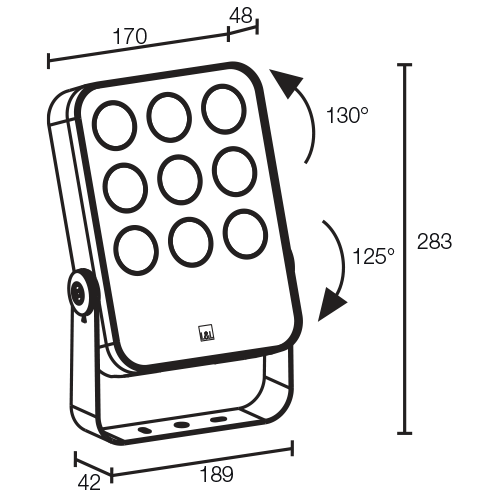

DXF Technical drawing
3DS File
BIM objects
LDT Photometric file Type
- Generic, for the product Siri 3.0
- Specific, for code SR3010FMT
IES Photometric file Type
- Generic, for the product Siri 3.0
- Specific, for code SR3010FMT
CB marking
EU declaration of conformity

Gallery

Accessories and power supply units

Accessories (3)

Accessories for product code SR3010FMT

Spikes and arms

WP0300

Spike for in-ground installation

Honeycomb louvre

Order together with the lighting fixture

WH5030

Honeycomb louvre

built into the lighting fixture

The honeycomb louvre can be fitted on all fixed optics, except for the 6° optics

Anti-glare screens

WB5030H

Anti-glare hood - anthracite

On request, the anti-glare hood is available in the same finish as the lighting fixture

Power supply units (0)

Power supply units for product code SR3010FMT

No power supply units

Control gear (0)

Control gear for product code SR3010FMT

No controllers

Control input (0)

No control inputs

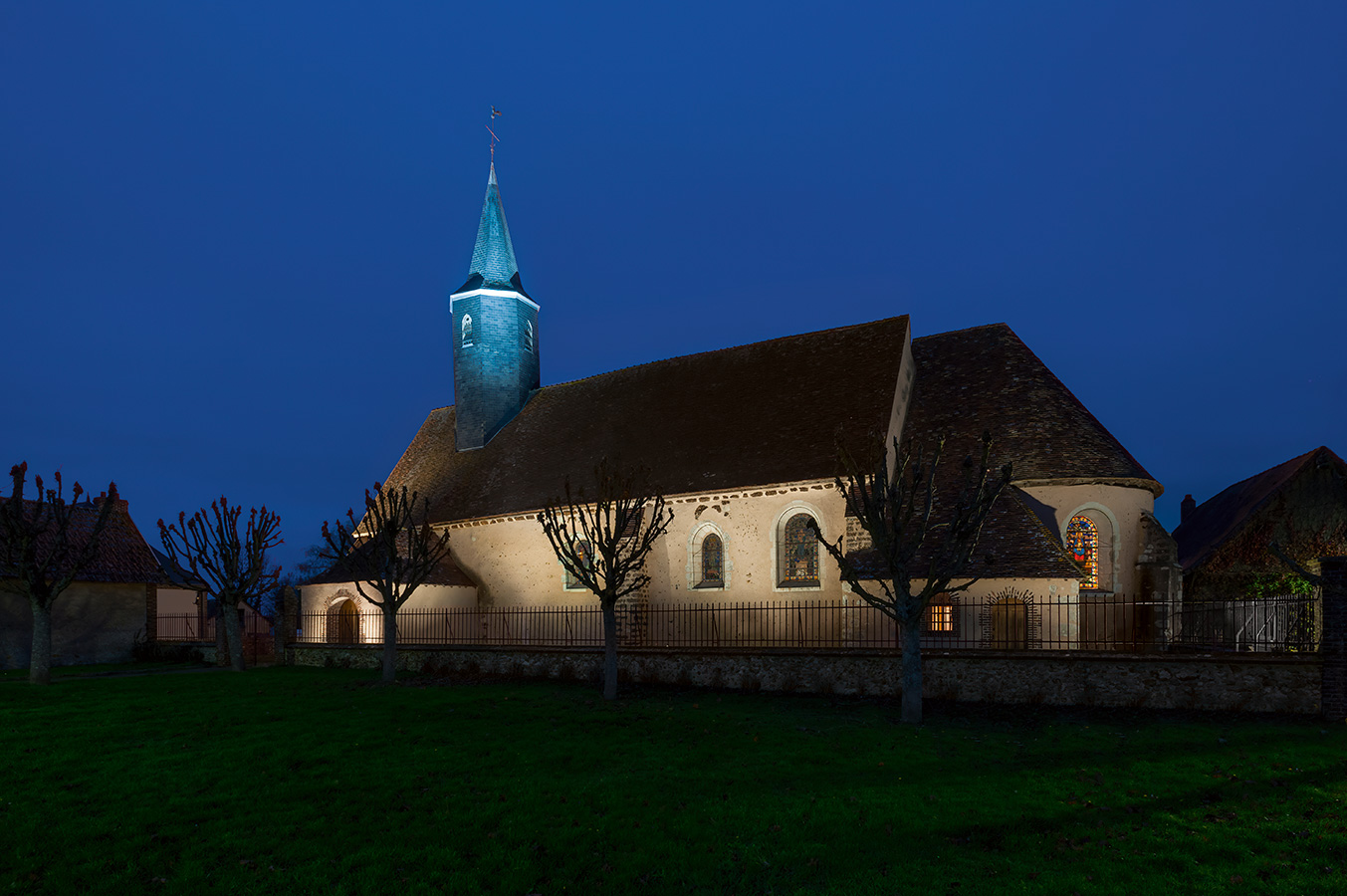

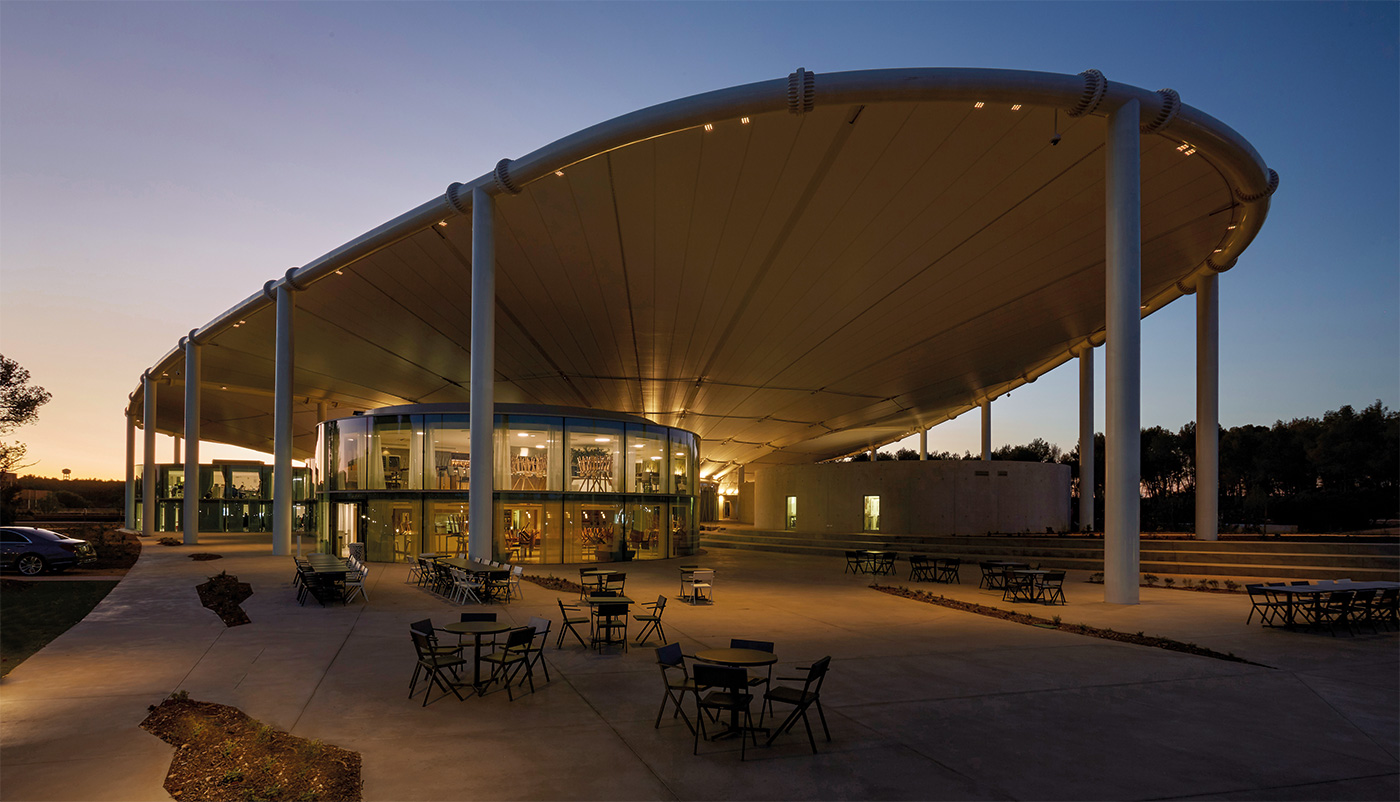

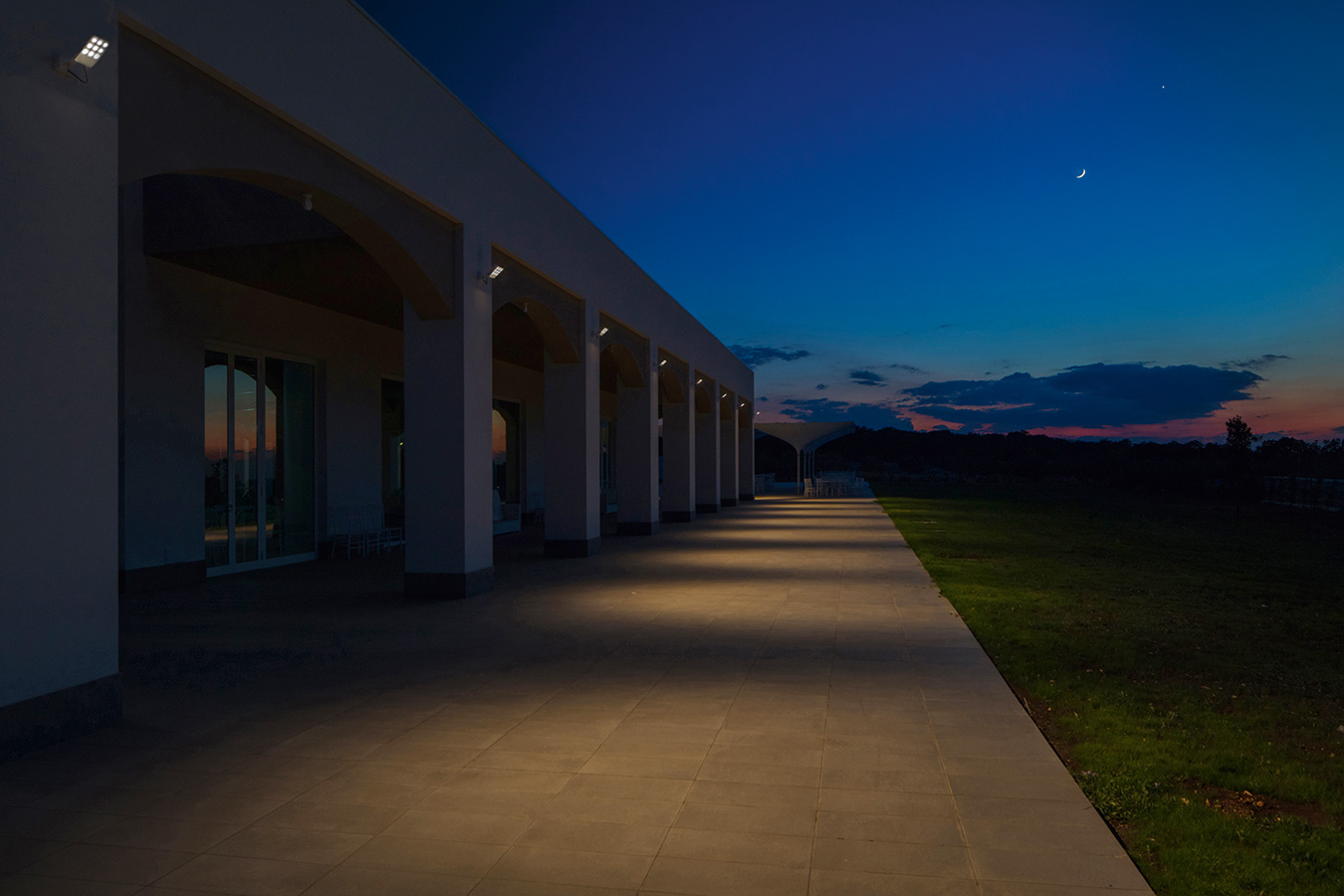

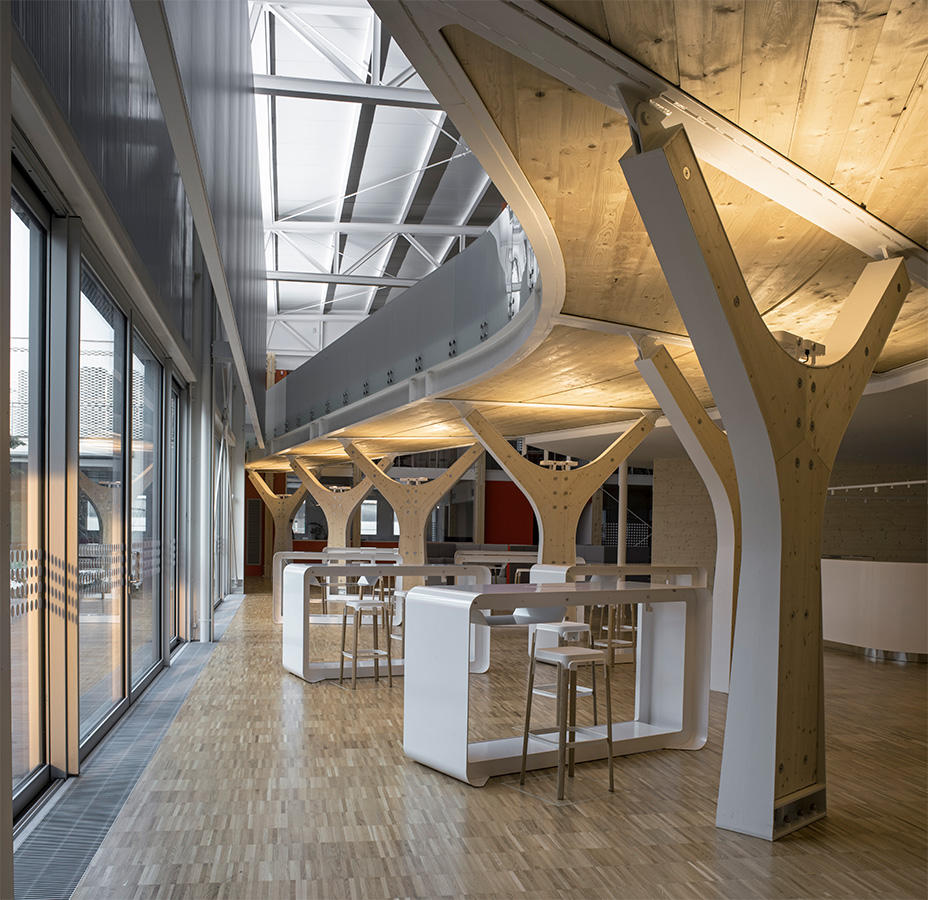

Projects
